Short-Reach Control • 45–50cm Bar • 10cm Closer Trim • Kites Up to 12m

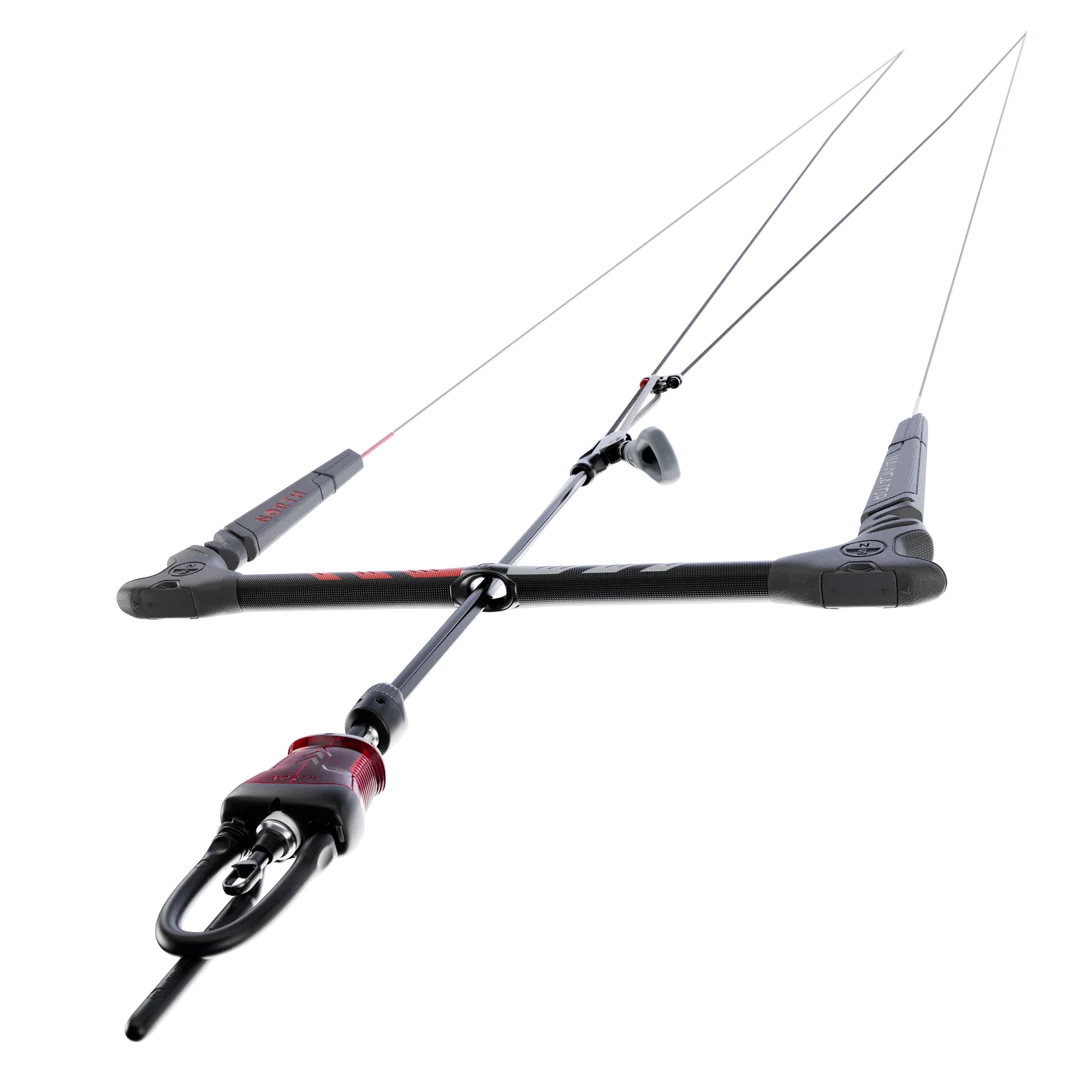

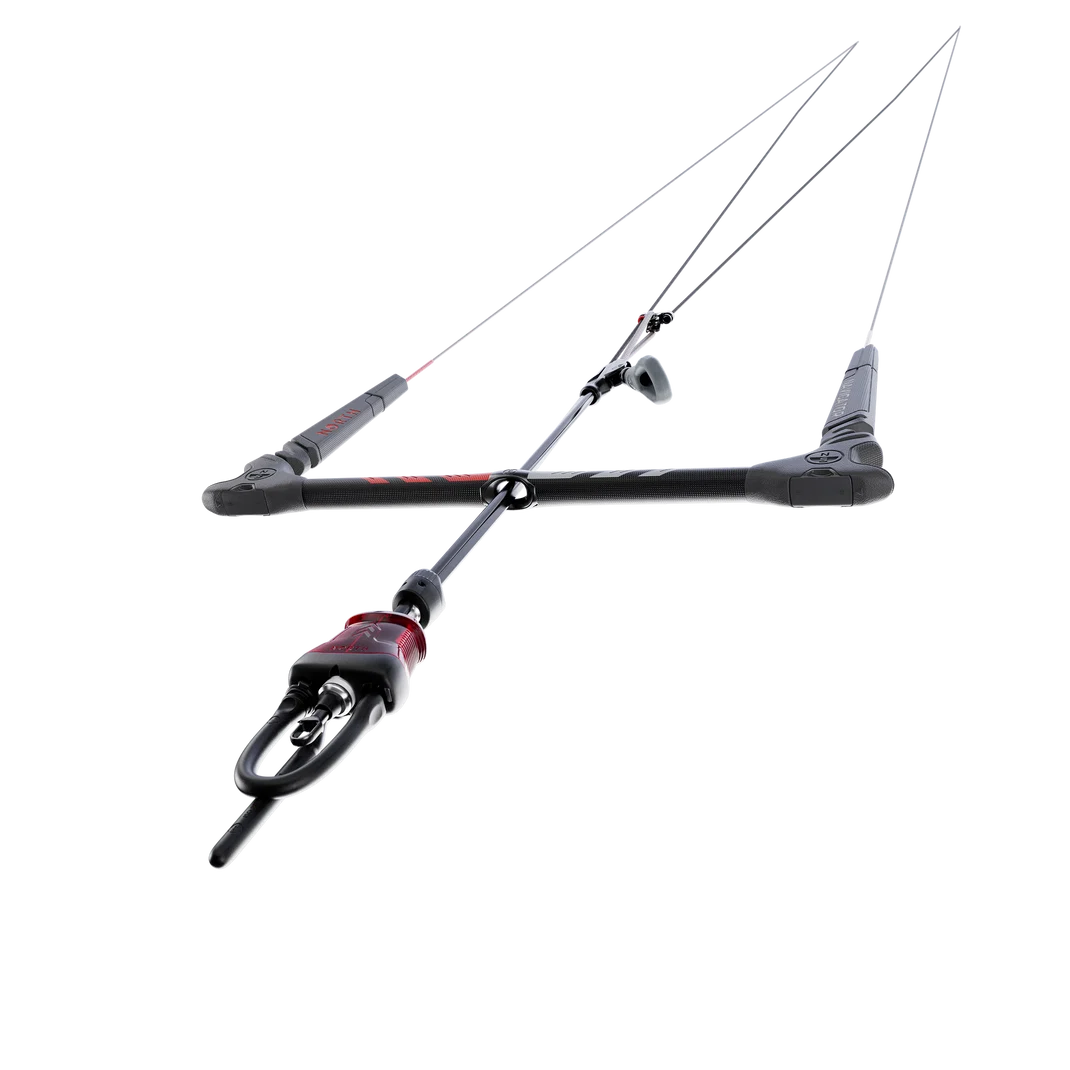

2027 North Navigator Gen2 Control System – Short Throw
A shorter-reach Navigator control bar that brings the trim handle 10cm closer for smaller-framed riders and anyone who struggles to reach full depower comfortably.
The 2027 North Navigator Gen2 Short Throw Control System delivers the safety, durability and modular versatility of the standard Navigator in a more accessible 45–50cm configuration. Shortened bar travel places the trim handle 10cm closer to the rider, making it easier to sheet out fully and adjust power without overextending the arms or shifting out of a controlled riding position. The Short Throw includes North’s Connect V2 Quick Release, pre-stretched SK75 Dyneema lines, adjustable bar ends, modular InterLoop system and smooth manual line unwinding.
- Trim handle positioned 10cm closer
- Adjustable 45–50cm width
- Recommended for kites up to 12m
- Connect V2 Quick Release
- 22m SK75 Dyneema lines
- Freeride Loop and leash included
Why Choose the Navigator Short Throw?
Trim Within Easy Reach
The shorter center system brings the trim handle 10cm closer than the standard Navigator. Smaller riders can adjust power without stretching excessively or releasing their preferred stance.
Comfortable Full Depower Reach
Reduced bar travel keeps the fully sheeted-out position closer to the rider. This can improve control for riders whose arms cannot comfortably reach the end of a standard depower throw.
Medium Adjustable Bar Width
The 45–50cm adjustable width suits a broad range of small and medium kite sizes. Rotating the bar-end cassettes lets you choose a more measured or more responsive steering feel.
Complete Navigator Performance
The Short Throw retains the standard Navigator’s Connect V2 safety system, modular loops, comfortable grip, SK75 lines, smooth cleated trim and strong internal bar construction.
Kite-size limit: North recommends pairing the Short Throw with kites 12m and smaller to maintain sufficient depower in high wind. Reduced throw means less total bar travel than the standard Navigator.
Who Benefits from a Short Throw Control Bar?
Smaller-Framed Riders
Riders with a shorter arm span can reach the bar and trim handle more comfortably while maintaining a balanced stance and secure connection to the harness.
Youth and Lightweight Riders
The shorter reach can improve control for younger or lighter riders who find a conventional center system physically oversized, provided the kite and equipment are appropriate for their ability.
Riders with Limited Reach
Anyone who must lean forward, rotate their shoulders or release their stance to reach the standard trim handle may benefit from the more accessible Short Throw layout.
Riders Seeking a Compact Cockpit
The reduced reach creates a compact connection between the rider and kite, helping keep trim adjustments and depower control within a comfortable working range.
Navigator Gen2 Short Throw Specifications
| Specification | Navigator Short Throw | What It Means |
|---|---|---|
| Bar Width | 45–50cm | Adjustable medium-width bar for small and medium kite sizes |
| Trim Position | 10cm closer | Easier access to the trim handle and fully sheeted-out position |
| Recommended Kite Size | 12m and smaller | North’s recommendation for retaining sufficient high-wind depower |
| Flying Lines | 22m total | 12m lower sections plus removable 10m upper sections |
| Line Material | 1.8mm SK75 Dyneema | Strong, pre-stretched lines designed for performance longevity |
| Line Management | Manual unwind | Smooth manual line untwisting rather than automatic unwinding |
| Included Loop | Connect V2 Freeride | Compact hooked-in setup for everyday freeride use |
45–50cm Adjustable Bar Width
Narrow Setting
The 45cm setting reduces steering leverage for smaller, faster-turning kites. It provides more measured steering input and can help the kite feel less reactive in stronger wind.
Wide Setting
The 50cm setting increases steering leverage for a faster turning response. It is useful with larger compatible kites or when the rider prefers more active steering.
To change the width, remove both bar-end cassettes, rotate them 180 degrees and reinstall them securely. Both sides must be placed in matching positions.
Connect V2 Safety System

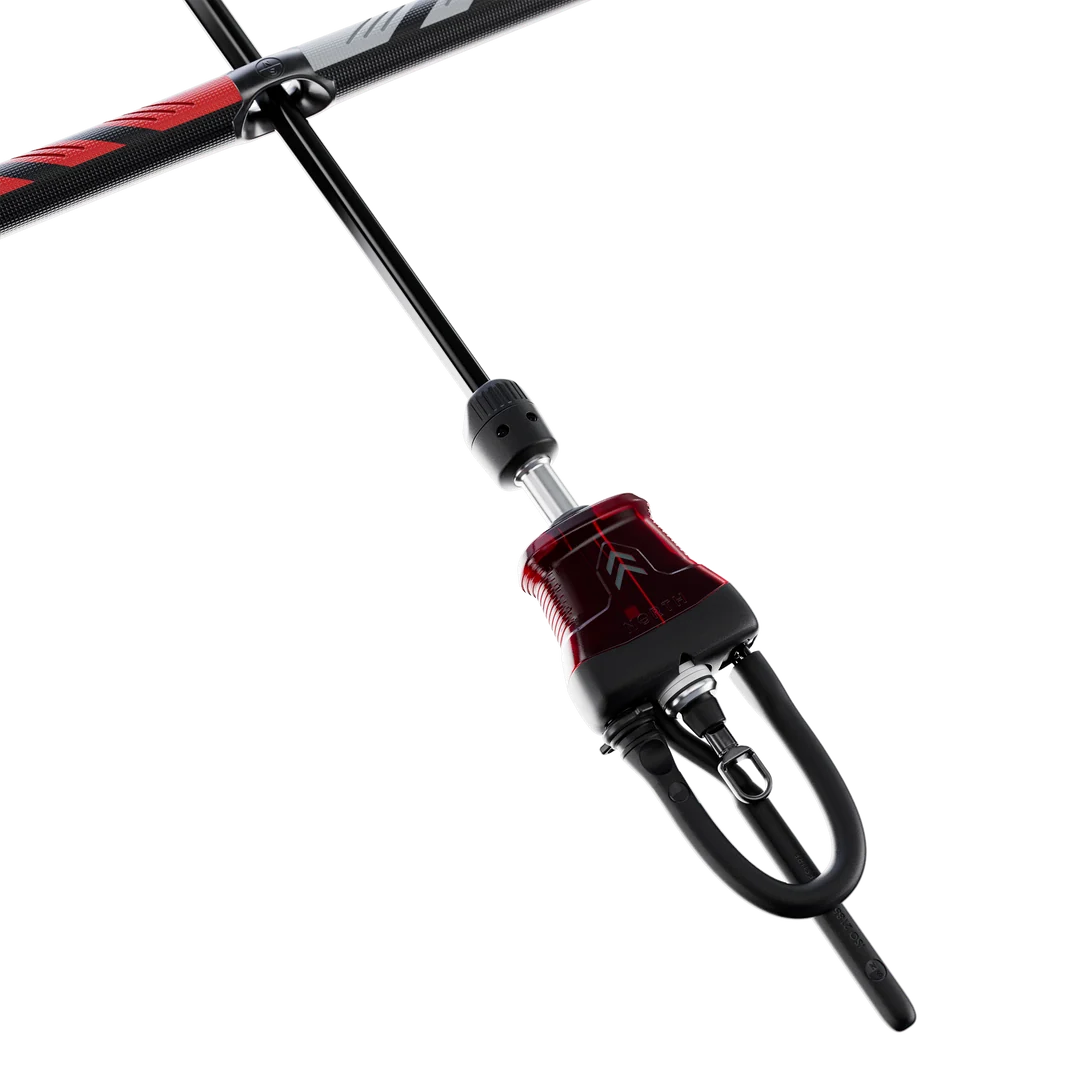

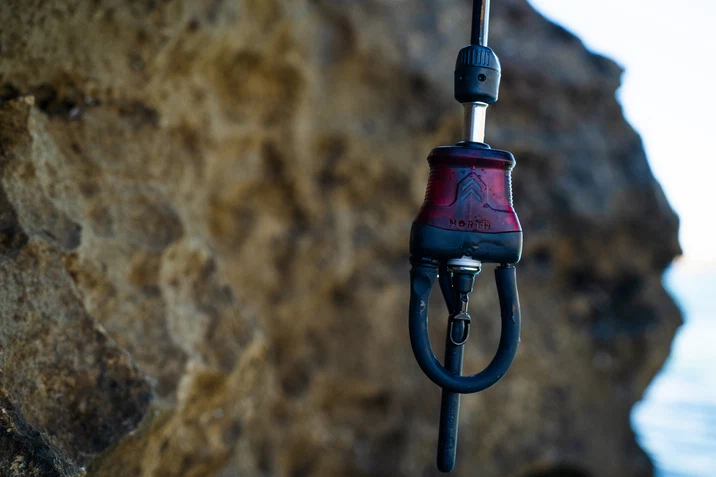

Safe Connect V2 Quick Release
The Connect V2 uses an extra-secure single-action reload system designed for dependable operation and straightforward resetting after activation.
Stiffer Security Finger
A firmer security finger helps retain the loop when riding hooked in. The updated design is intended to reduce the risk of accidental unhooking or unintended release.
Compact Freeride Loop
The smaller Connect V2 loop keeps the rider connection compact and provides 20mm of additional bar travel within the Short Throw system.
Spinning Leash Ring
The elongated oval leash ring makes the leash carabiner easier to attach and rotates to help prevent the landing line from twisting.
Safety reminder: Practice activating and reloading the quick release on land. Inspect the release, security finger, leash, landing line and flying lines before every session.
Navigator Gen2 Construction and Control
Fiber-Filled Internal Truss
Technology derived from the Navigator Pro reinforces the bar’s internal structure. The fiber-filled polymer truss keeps weight low while increasing stiffness by 20% for direct steering feedback.

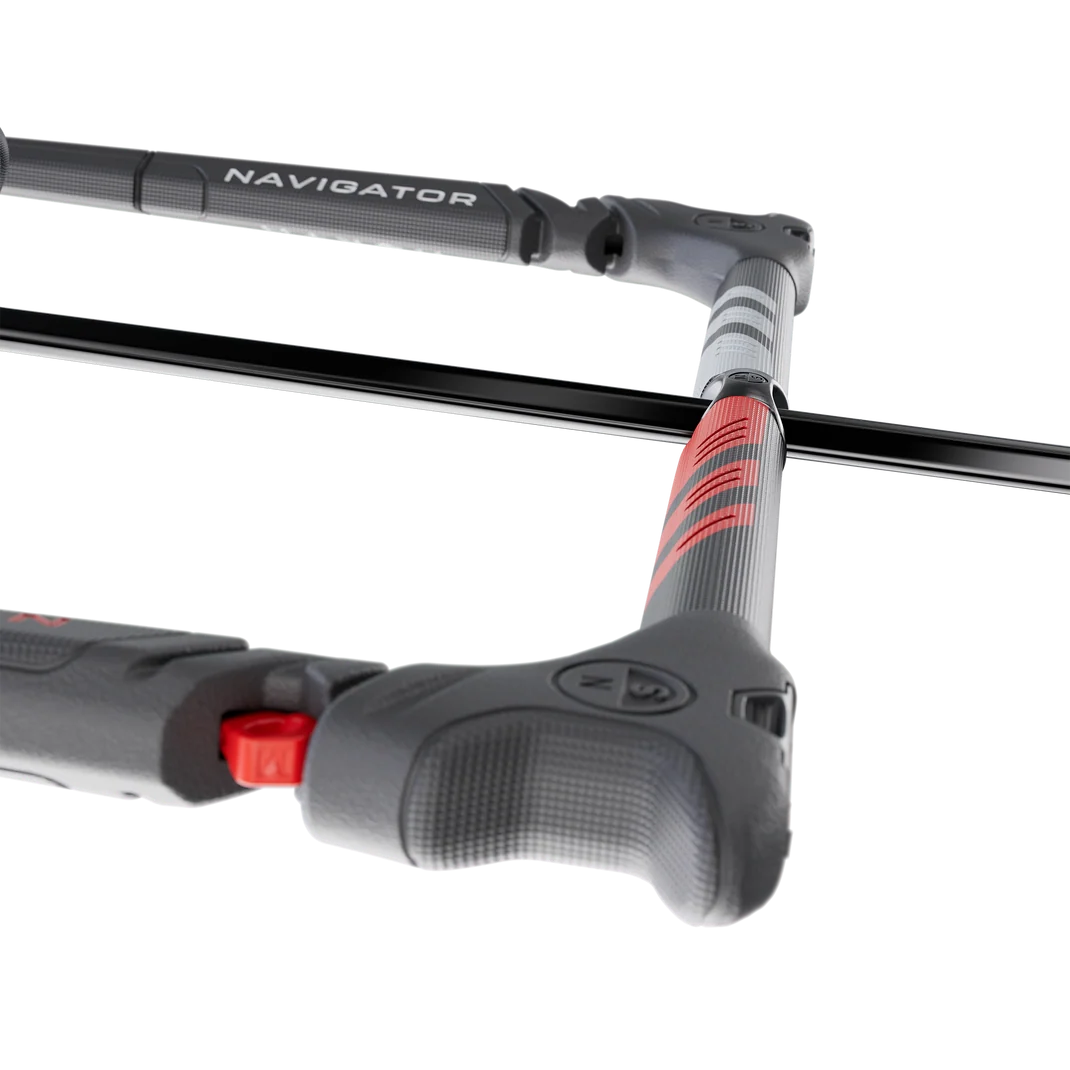

Triple-Comfort EVA Grip
Rubberized EVA provides a secure, cushioned hold with improved abrasion resistance. A tactile offset finger ridge helps the rider identify correct bar orientation without looking.
SK75 Liros Dyneema Lines
Strong, pre-stretched 1.8mm flying lines deliver dependable load capacity and performance longevity. Their construction is designed to resist uneven shrinkage over time.
Smoother Cleated Trim System
An updated power bracket allows smoother on-demand trimming while reducing line wear. The circular cleat base supports consistent bar rotation.
Effortless Manual Unwind
The center system is designed for smooth manual line unwinding after rotations. The standard Short Throw does not automatically untwist the front lines.
Tactile Bar Orientation
Visual color separation and the offset finger reference help riders recognize the correct orientation quickly during relaunches, transitions and demanding conditions.
Customizable Flying-Line Length
| Configuration | Total Length | General Effect |
|---|---|---|
| 12m + 10m | 22m |
Included All-around power delivery and familiar kite response |
| 12m + 8m | 20m | Quicker response with a slightly smaller wind window |
| 12m + 6m | 18m | Faster handling for specialized riding or stronger wind |
| 12m + 2m | 14m | Short-line configuration for training and specialized applications |
The 22m line set is included. Compatible 8m, 6m and 2m upper line sections are sold separately. Shorter lines reduce the wind window and can significantly change kite power and handling.
Connect V2 Toolless Loop Options
| Loop | Primary Use | Package Status |
|---|---|---|
| Connect V2 Freeride Loop | Hooked-in freeride, progression and general riding | Included |
| Connect V2 Freestyle Loop | Unhooked freestyle with compatible Freestyle Leash Ring | Sold separately |
| Connect V2 Surf Slider | Rope-harness use for surf and kite-foil riding | Sold separately |
Standard Navigator vs. Short Throw
| Feature | Standard Navigator Gen2 | Navigator Gen2 Short Throw |
|---|---|---|
| Trim Reach | Standard center-system length |
10cm Closer Designed for easier access |
| Bar Widths | 38–43cm, 45–50cm or 50–55cm | 45–50cm only |
| Kite Guidance | Size-specific recommendations across a broad kite range | Kites 12m and smaller |
| Best For | Riders comfortable with standard bar travel | Smaller-framed riders or anyone needing a shorter reach |
| Line Management | Smooth manual unwind | Smooth manual unwind |
Choose the Short Throw for improved physical fit and easier access—not simply because you prefer a smaller bar. Riders who can comfortably reach the standard trim handle generally retain more total depower travel with the standard Navigator.
Who Is the Navigator Short Throw For?
Best For
- Smaller-framed riders with a shorter arm span
- Riders who cannot comfortably reach a standard trim handle
- Youth or lightweight riders using suitable equipment
- Freeriders who prefer a compact control layout
- Compatible kite quivers using 12m and smaller kites
- Riders wanting standard Navigator value with improved fit
What You’ll Notice
- The trim handle sits 10cm closer
- Less arm extension when fully sheeted out
- Easier power adjustments while maintaining stance
- Adjustable 45cm or 50cm steering leverage
- Comfortable grip with tactile orientation
- Smooth manual line unwinding
What’s Included?
Included
- 2027 North Navigator Gen2 Short Throw Control Bar
- Connect V2 Quick Release with security finger
- 22m line set: 12m + 10m sections
- 1.8mm SK75 Liros Dyneema flying lines
- Connect V2 Freeride Loop
- North Standard Leash
Optional or Not Included
- Connect V2 Freestyle Loop
- Connect V2 Surf Slider
- Alternative line-length sections
- Handle-pass leash
- Kite and kite pump
Compatibility Notes
- Available only in an adjustable 45–50cm bar width.
- Recommended by North for kites 12m and smaller.
- Designed and optimized for compatible North four-line kites.
- Compatible with current Connect V2 Freeride, Freestyle and Surf loop options.
- Cross-brand compatibility should be verified for line length, flag-out travel, front-line split and connector orientation.
- Earlier-generation Navigator components should not be assumed compatible.
Pair the Short Throw with a compatible kite and follow North’s current setup instructions. If you are uncertain whether reduced throw provides sufficient depower for your kite, use the standard Navigator or contact Windance before riding.
Frequently Asked Questions
How much shorter is the Navigator Short Throw?
The shortened center system positions the trim handle 10cm closer to the rider than the standard Navigator, reducing the reach required for trimming and full depower.
Why is it limited to kites 12m and smaller?
Shorter bar travel reduces the total sheeting range. North recommends kites 12m and smaller so the system retains sufficient depower capability in high wind.
Is the bar width adjustable?
Yes. The bar adjusts between 45cm and 50cm by removing and rotating the bar-end cassettes 180 degrees.
Does the Short Throw automatically untwist the lines?
No. The Navigator Gen2 Short Throw provides smooth manual line unwinding. Automatic front-line untwisting is a Navigator Pro feature.
How long are the included lines?
The package includes 22m lines divided into 12m lower sections and removable 10m upper sections. The SK75 Dyneema lines have a 1.8mm diameter.
Is the Freeride Loop included?
Yes. A Connect V2 Freeride Loop and North Standard Leash are included. Compatible Freestyle and Surf Slider loops are sold separately.
Is this bar only for children?
No. It is suitable for any rider who benefits from a shorter reach, including smaller adults and riders who cannot comfortably access a standard trim handle.
What changed for 2027?
The 2027 model receives the Connect V2 Quick Release, a fiber-filled internal truss with increased stiffness, improved grip durability and a smoother updated trim bracket.
