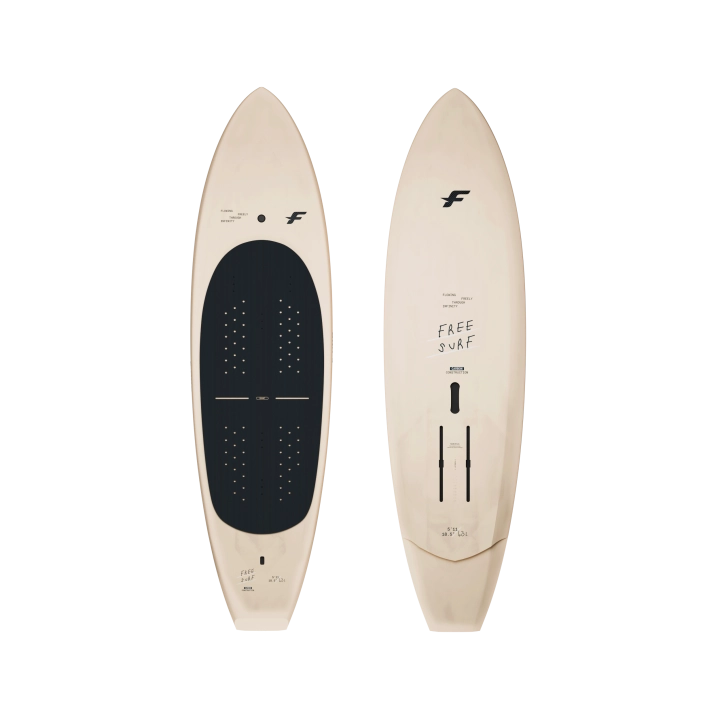

2026 F-One ROCKET FREE SURF CARBON Wing Foil Board
Efficient glide into takeoff. Direct carbon response through every pump and carve.
The 2026 F-One ROCKET FREE SURF CARBON combines a narrow, elongated shape with light, stiff construction for smooth acceleration and precise foil control. Designed for prone, pocket wing, K-Wing and foil assist, it balances takeoff support with a lively feel through turns. HD Foam Carbon Composite and Carbon Twin-Tracks deliver direct feedback, with eight sizes from 47L to 91L.
- 47L–91L · Eight Sizes
- HD Foam Carbon Composite
- 90mm Carbon Twin-Tracks
- Automatic Pressure Valve
- Carving and Pumping
Explore the FREE SURF CARBON in 3D
Rotate the board and zoom in to explore its outline, deck and hull details.
Why Choose the FREE SURF CARBON?
Build Speed Smoothly
The elongated outline and straight rocker promote efficient acceleration, helping you reach takeoff speed and make the most of the available power.
Lean Into Your Turns
A tapered nose and tail, narrow bottom outline and reduced thickness give the board clearance and control through committed carves.
Feel Each Pump
The stiff carbon construction and direct foil connection deliver a reactive feel when pumping, changing direction or adjusting pitch.
Flow Through Touchdowns
Beveled rails help reduce drag when the board reconnects with the water, supporting smoother recoveries as you link turns.
Construction and Technical Features
HD Foam Carbon Composite
High-density foam, fiberglass and carbon fiber form a light, stiff sandwich structure with resistance to heel pressure and everyday impacts.
Carbon Twin-Tracks
Carbon tracks enhance foil feedback and pumping response. Their extended adjustment range gives you more room to tune mast position and balance.
Refined Deck and Tail
The reshaped deck improves foot placement. A rear step and kicktail promote clean water release and support pumping amplitude.
Breathable Valve
The valve automatically balances internal pressure as temperature and altitude change, helping reduce stress on the board’s structure.
Board Dimensions and Specifications
F-One reference: 77268-1303C
| Size | Dimensions · Imperial | Dimensions · Metric | Volume | Approx. Weight | Carry Handle |
|---|---|---|---|---|---|
| 5'2 | 5'2 × 17.5" × 4.2" | 157.5 × 44.5 × 10.7 cm | 47 L | 4.1 kg / 9.0 lb | — |
| 5'5 | 5'5 × 17.75" × 4.3" | 165.1 × 45.1 × 10.9 cm | 52 L | 4.3 kg / 9.5 lb | — |
| 5'8 | 5'8 × 18" × 4.5" | 172.7 × 45.7 × 11.4 cm | 59 L | 4.5 kg / 9.9 lb | — |
| 5'11 | 5'11 × 18.5" × 4.6" | 180.3 × 47.0 × 11.7 cm | 63 L | 4.7 kg / 10.4 lb | — |
| 6'2 | 6'2 × 18.75" × 5.0" | 188.0 × 47.6 × 12.7 cm | 71 L | 5.0 kg / 11.0 lb | Yes |
| 6'5 | 6'5 × 19" × 5.2" | 195.6 × 48.3 × 13.2 cm | 79 L | 5.4 kg / 11.9 lb | Yes |
| 6'8 | 6'8 × 19.25" × 5.3" | 203.2 × 48.9 × 13.5 cm | 85 L | 5.5 kg / 12.1 lb | Yes |
| 6'11 | 6'11 × 19.5" × 5.4" | 210.8 × 49.5 × 13.7 cm | 91 L | 5.8 kg / 12.8 lb | Yes |
Dimensions are length × width × thickness. Weights are approximate; pound conversions are rounded.
Choosing Your Size
47L–63L
The four shorter sizes suit riders seeking a compact platform for prone or powered free-surf sessions. Match the volume to your weight and established takeoff technique.
71L–91L
The longer sizes provide more volume and glide while preserving the narrow outline. All include a carry handle. At 19.5 inches wide, even the 91L remains focused on efficient handling.
Choose around your weight, starting technique, foil and usual conditions. Consider board width alongside liters when assessing stability before takeoff.
Compare the FREE Range
| Model | Main Difference | Choose It For |
|---|---|---|
| ROCKET FREE SURF CARBON | HD Foam Carbon Composite and Carbon Twin-Tracks | A stiff, reactive feel for pumping, carving and precise foil control. |
| ROCKET FREE SURF | The same shape and riding program with Bamboo Deck Construction | FREE SURF glide and maneuverability at a lower price. |
| ROCKET FREE DOWNWIND CARBON | A larger platform emphasizing stability and takeoff support | Extra flotation and on-water comfort for freeride and downwind sessions. |
See the FREE SURF in Action
Watch F-One’s official ROCKET FREE SURF video.
Frequently Asked Questions
Can I Use It for Wing Foiling?
Yes. Alongside prone, pocket wing, K-Wing and foil assist, it suits experienced wing foilers who value glide and carving.
Which Foils Fit?
The Carbon Twin-Tracks use 90mm spacing for compatible four-bolt mast top plates. Adjustable mast positioning helps you balance the board with your foil.
How Does Carbon Change the Ride?
F-One’s carbon version retains the bamboo model’s shape and riding program, adding stiffness and a more immediate response when pumping.
Is It a Good First Wing Board?
Its narrow outline rewards balance and an established starting technique. A wider wing foil board may offer more support while learning waterstarts.
Find Your FREE SURF Setup
Need help choosing a volume or matching your foil? Call Windance at 1-800-574-4020 with your weight, experience and usual riding conditions.
Board only. Hydrofoil sold separately.
