2027 Slingshot Project Drag UHM Mast 80 cm
● Pre-Order Now
Reserve yours now — limited first shipment
Expected Availability
November 15, 2026
Reserve your Slingshot Project Drag UHM 80 cm carbon mast from our next shipment. Choose Tuttle or Pedestal to match your board, and we’ll ship your mast as soon as it arrives.
Why pre-order? Be first in line, secure limited incoming stock, and avoid missing out when inventory lands.

2027 Slingshot Project Drag UHM Mast 80 cm

by Slingshot
$2,199.00
Type
210000057035

Notify me when back in stock

Carbon Foil Mast • 80 cm • One-Lock

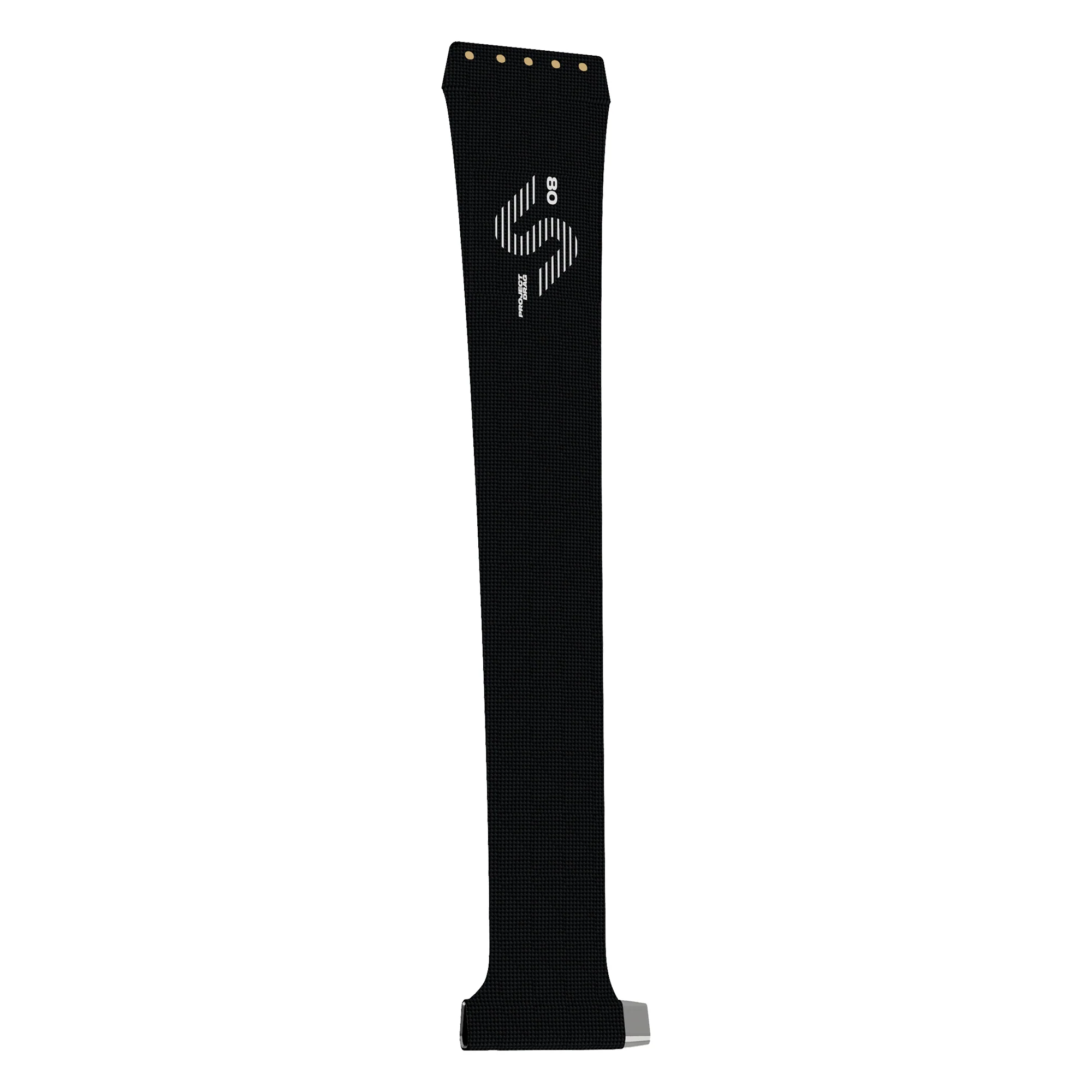

2027 Slingshot Project Drag UHM Mast 80 cm

Build your Project Drag setup around the right mast and the right connection.

The 2027 Slingshot Project Drag UHM Mast 80 cm is a carbon foil mast designed for downwind, open ocean, wing freeride, parawing and tow-in riding. Choose the board mount that matches your setup.

  • 80 cm Length
  • UHM Carbon
  • Tuttle or Pedestal
  • One-Lock Platform

Choose your board connection: Select Tuttle for the Tuttle Project Drag board, or Pedestal for its Track version.

Check your foil components too: the connection below the mast uses Slingshot One-Lock. Matching the board mount is one part of choosing a compatible setup.

Why Choose This Carbon Foil Mast?

UHM Carbon Construction

Ultra high modulus carbon provides a stiff structure for precise input when you load up a turn.

Tapered Profile

The section becomes thinner toward the foil connection to reduce resistance through the water.

Controlled Flex

The layup manages bending and twisting under load for consistent feedback.

One-Lock Assembly

The front wing and stabilizer connect through One-Lock's locking clasp. Choose compatible components for the conditions, then assemble the foil without screws at that connection.

Tuttle or Pedestal: Which Should You Order?

Tuttle: For a Compatible Tuttle Box

Choose Tuttle for the Tuttle Project Drag board. Its extended box uses shims to set the mast in front, center or rear positions. Follow the board instructions for shim placement and screw length.

For another Tuttle board, confirm the fit and mounting requirements before ordering.

Pedestal: For Standard Foil Tracks

Choose Pedestal for the Track Project Drag board or a board with compatible standard foil tracks. Position the mast along the tracks to suit your stance and foil, then follow the board's mounting instructions.

Check the board mount and the lower foil connection separately.

Building a Project Drag setup? Pair the appropriate mast version with the Slingshot Project Drag Wing Foil Board . Match Tuttle to Tuttle or Pedestal to Track.

Project Drag UHM Mast Specifications

Length 80 cm
Construction Ultra high modulus carbon
Board Mount Options Tuttle / Pedestal
Foil Platform Slingshot One-Lock

What's Included

Tuttle Version

  • Project Drag UHM mast

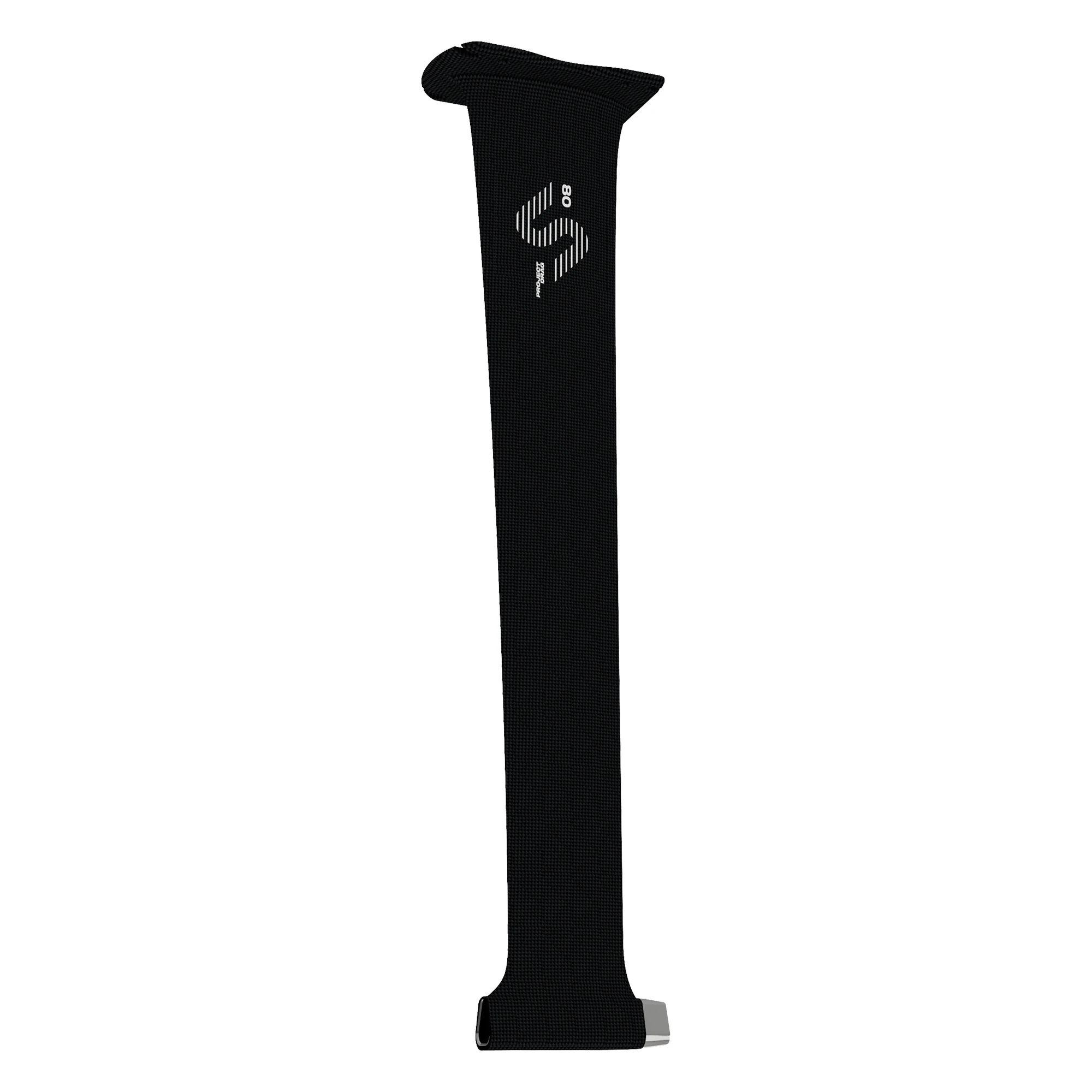

  • Mast cover
  • 5 × M6 barrel nuts

Pedestal Version

  • Project Drag UHM mast
  • Mast cover
  • 4 × M6 × 25 mm screws
  • 4 × M6 T-nuts

Board, front wing and stabilizer are sold separately. For the Project Drag Tuttle board, use its mounting guide to select screw length and arrange the shims.

Slingshot Project Drag Mast FAQ

What does UHM mean?

UHM stands for ultra high modulus. It describes the carbon construction used here to prioritize stiffness.

Will it work with my current foil?

Check the foil platform as well as the board mount. If your current foil uses another connection, ask Windance to check the exact components before you order.

Does One-Lock replace the board bolts?

One-Lock secures the foil components below the mast. The board connection still needs its specified mounting hardware. Follow the instructions for your board and selected mast version.

Is 80 cm the right length for me?

Compare it with your current mast, the depth of your launch and the conditions you ride. Tell us what you want to change about your setup so we can help you choose.

Get the Right Connection Before You Order

Tell Windance your board model, mount type and current foil components. We can help you choose the correct version and check what else you need to complete your setup. Call 1-800-574-4020 to talk with a foil expert.
