North Kiteboarding • Surf / Strapless Freestyle

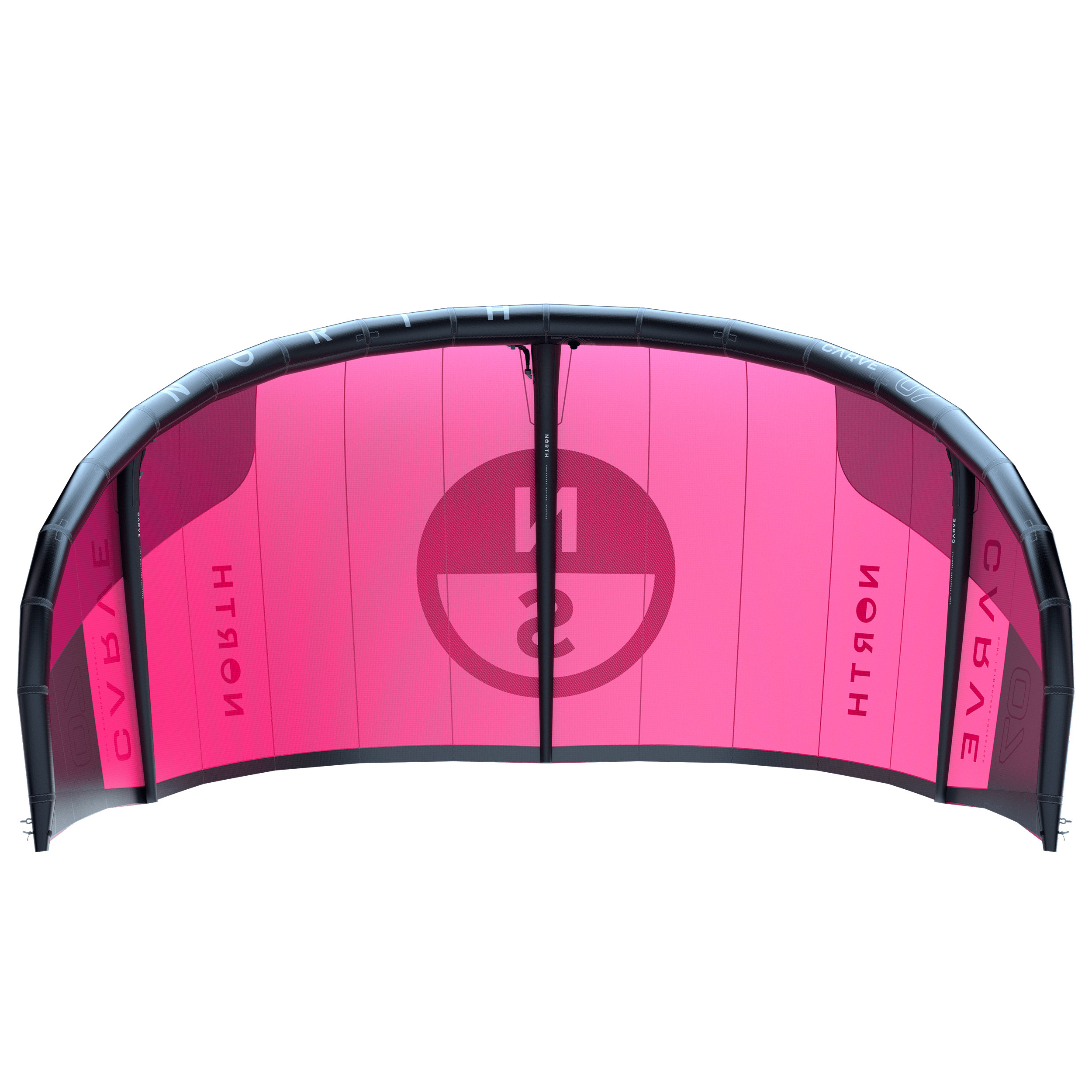

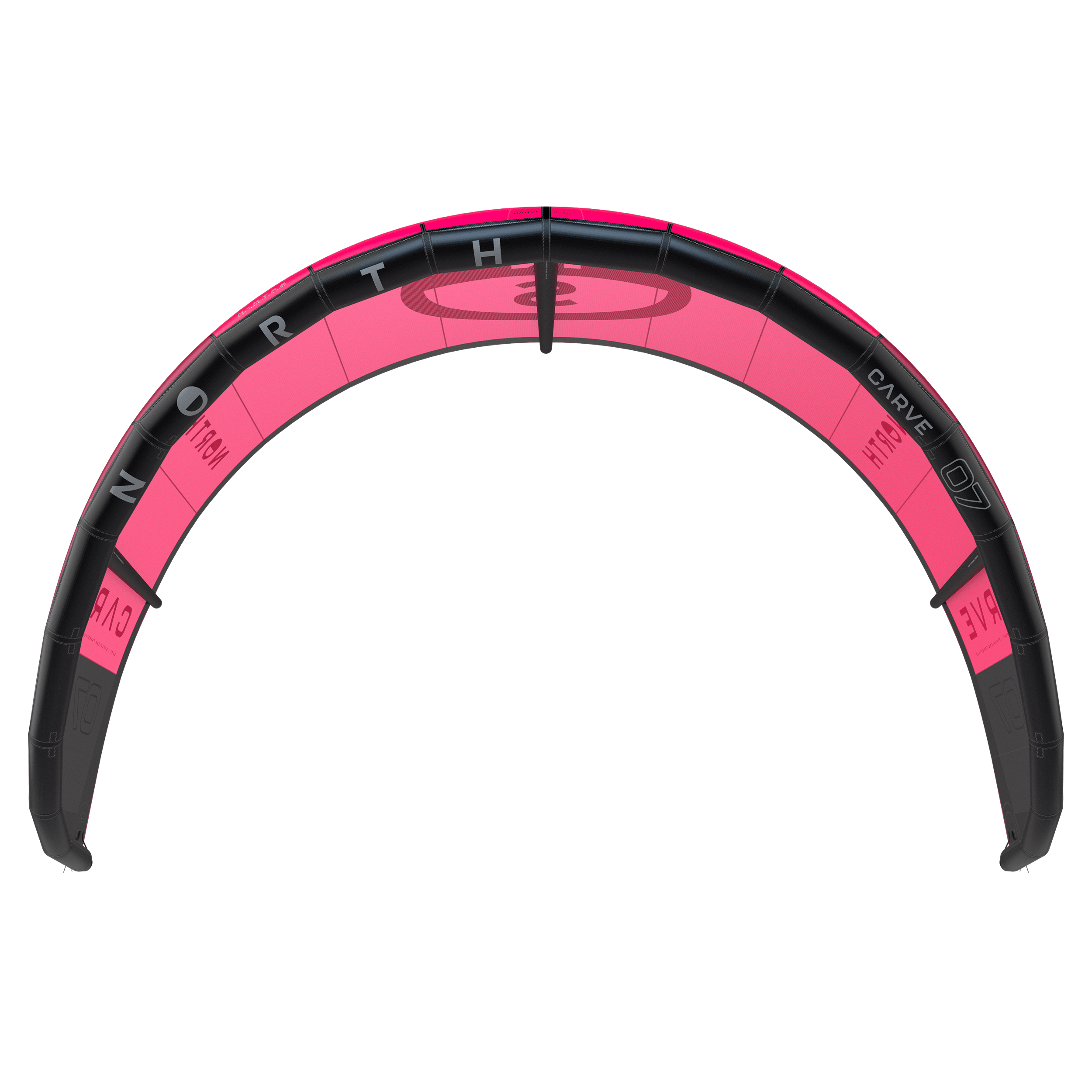

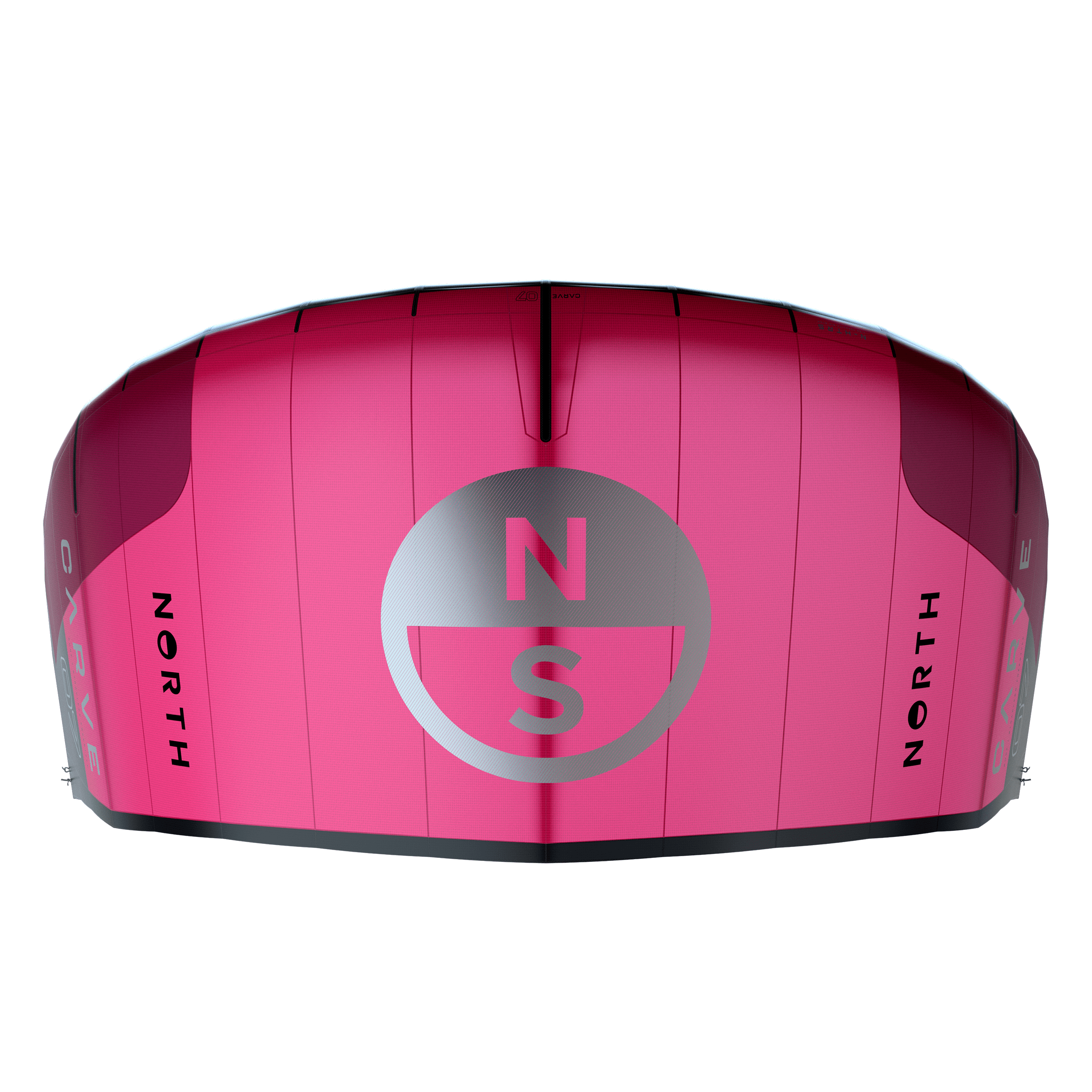

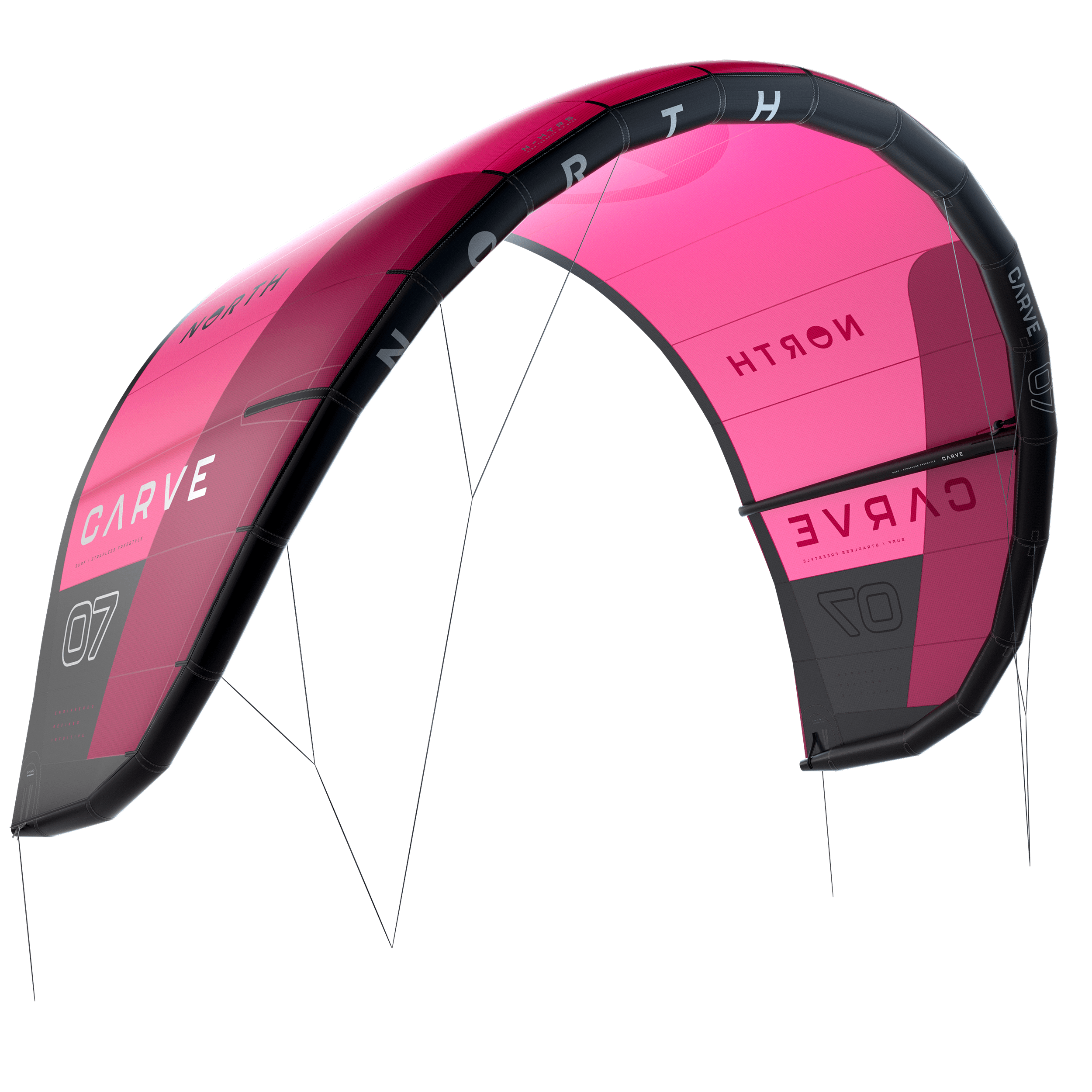

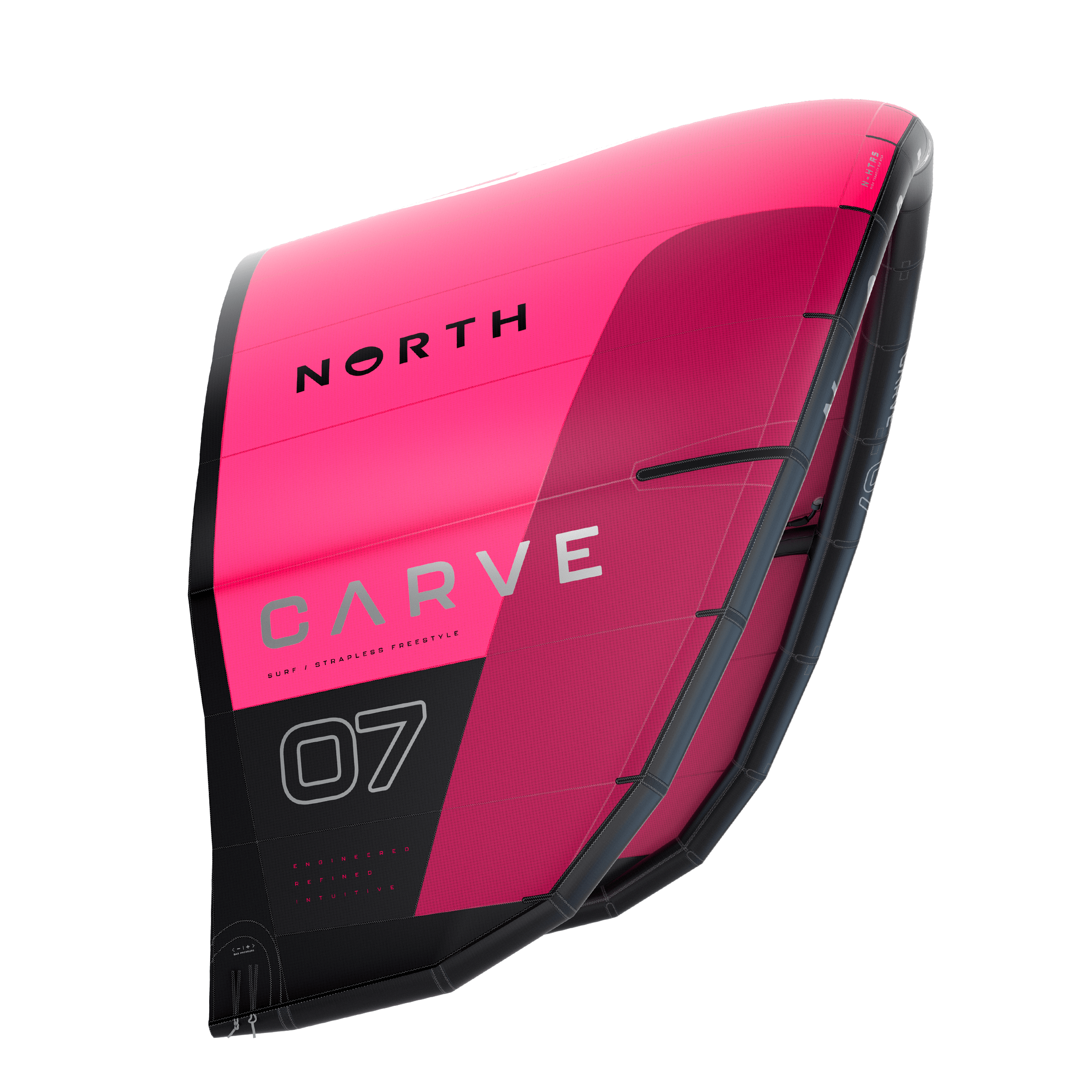

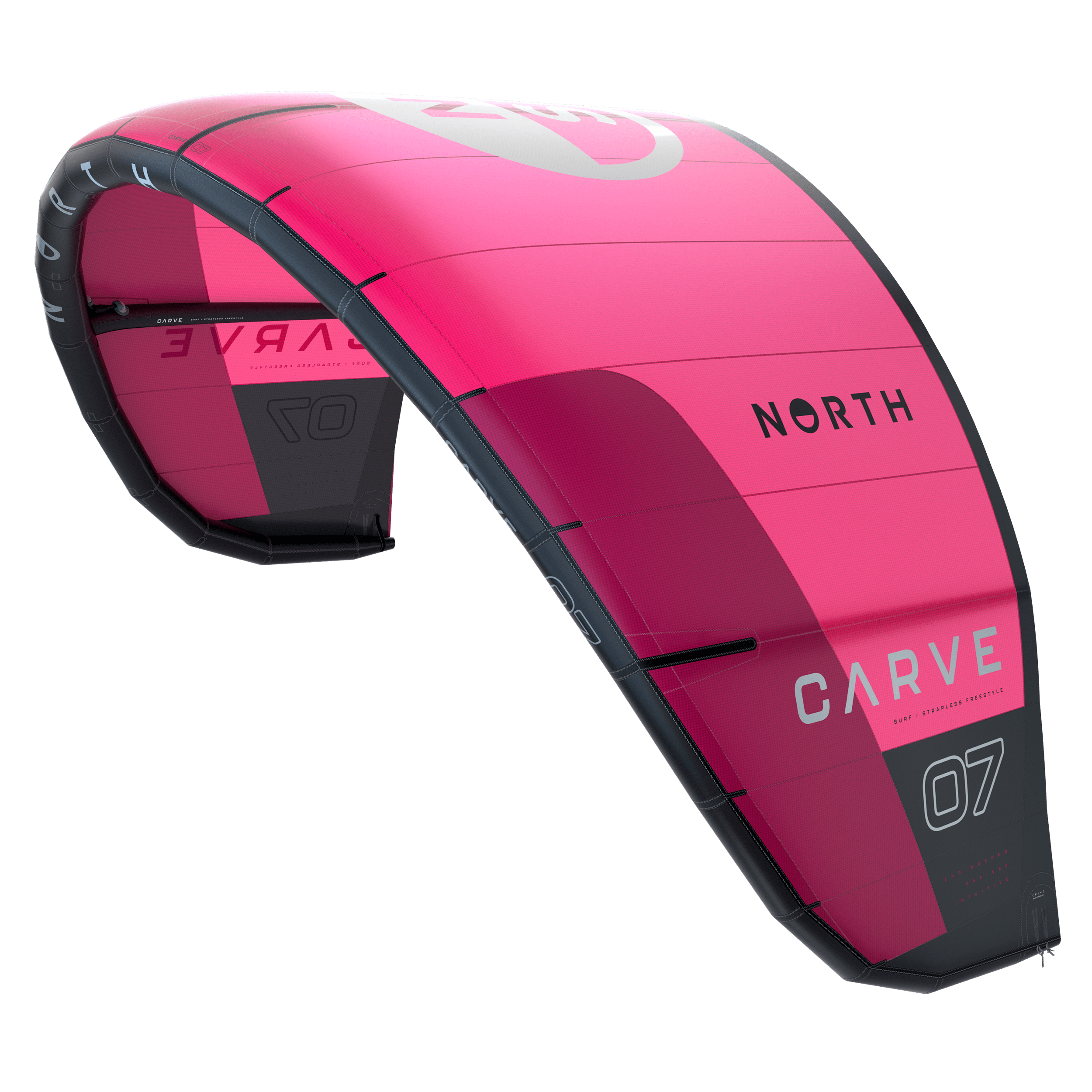

2024 North Carve Kiteboarding Kite
Fast pivot turns, dependable drift and progressive depower for wave riding and strapless freestyle.
The 2024 North Carve is a dedicated three-strut wave and strapless freestyle kite built to stay balanced while you surf toward it, redirect quickly through tight turns and depower without becoming unresponsive. North completely redesigned the Carve for 2024 with a lower-aspect shape, smaller leading edge, lighter wingtips and more sweep. The result is faster steering, lighter bar pressure, improved drift and less unwanted pull across the wave face.
- Wave / Strapless Freestyle
- Intermediate–Advanced
- Three-Strut Kite
- Dacron Airframe
- Low-Aspect Shape
- Sizes 4–13m
Why Choose This Kite?
Choose the Carve when wave riding and strapless control are more important than maximum Big Air performance or one-kite freeride versatility.
The Carve is designed to let the rider concentrate on the wave instead of constantly correcting the kite. It provides direct steering feedback, quick pivot turns and excellent drift whether the bar is sheeted in or out. The progressive bar stroke helps reduce pull through bottom turns while keeping enough rear-line response to reposition the kite for the next section.
Compared with the North Reach, the Carve turns more tightly, drifts more naturally and produces less unwanted pull on the wave face. Compared with the Code Zero, it offers more structural support for powered surf and strapless jumping. It is also much more wave-focused than the Orbit, which prioritizes high-aspect efficiency, boosting and hangtime.
Best Uses and Riding Style
Wave Riding
Wave riding is the Carve’s primary discipline. Its low-aspect outline, static balance and light construction help it follow the rider down the line without nose-diving. Fast pivot steering allows quick redirection for bottom turns, cutbacks and late hits.
Strapless Freestyle
Smooth lift, manageable power and dependable catch make the Carve well suited to strapless rotations and aerial transitions. It provides enough hangtime to complete a trick without the aggressive horizontal pull of a dedicated Big Air kite.
Freeride
The Carve remains a capable freeride kite with efficient upwind travel, intuitive power and smooth handling in gusts. Riders who spend most sessions on a twin tip and only occasionally ride waves will find the Reach more versatile and better suited to general progression.
Beginner Progression
Intermediate riders will find the 2024 Carve smoother and more user-friendly than earlier versions. Its relaunch and depower are approachable, but its direct steering and specialized wave focus make the Reach the better North choice for lessons and first-season progression.
Kite Foiling
Strong drift and responsive depower make the Carve useful for foiling, especially if the same kite will also be used for surf. The lighter single-strut Code Zero remains the more efficient North option for dedicated foil and marginal-wind sessions.
Big Air, Racing and Light Wind
The Carve provides respectable recreational boost and improved low-end power, but it is not a Big Air or racing kite. Choose the Orbit for maximum height and hangtime, or a race-specific foil kite for racing. The 12m and 13m cover lighter-wind surf and freeride, but they are not dedicated ultra-light-wind designs.
Turning, Bar Pressure and Flight Characteristics
Turning Speed
The 2024 Carve turns faster and initiates earlier than the previous generation. Its segmented curved arc, thin wingtips and centered draft produce tight pivot turns without an abrupt surge of power. This lets riders redirect the kite quickly without being pulled off the wave.
Bar Pressure
Bar pressure is light but direct enough to locate the kite without looking at it. Two rear-line attachment settings adjust steering impulse. The point closest to the wingtip creates the lightest, most forgiving feel; the forward point increases pressure, directness and steering response.
Progressive Depower
A longer bar stroke produces progressive depower rather than an abrupt on-off response. Pressure increases as the bar moves closer to the rider, providing smooth feedback through the entire range. The kite remains responsive after sheeting out, which is important when depowering through a turn.
Relaunch
Added leading-edge sweep and useful canopy area through the center help the Carve roll onto a wingtip and release from the water quickly. Easy relaunch is especially valuable in waves, where getting the kite airborne before the next set can protect both rider and equipment.
Drift
Drift is the Carve’s defining strength. Its statically balanced structure resists nose-diving and continues following the rider while sheeted in or out. This works in both down-the-line and onshore waves, where line tension changes rapidly.
Boosting and Hangtime
The Carve generates smooth, predictable lift with enough hangtime and catch for strapless rotations and softer landings. It can deliver enjoyable twin-tip jumps, but the low-aspect three-strut platform does not produce the vertical boost or extended float of the five-strut Orbit.
Construction and Technology
Three-Strut Dacron Airframe
The Carve uses an industry-proven Dacron leading edge, wingtips and three-strut structure. Three struts balance low weight and drift with enough canopy support for powered wave riding, gusty conditions and strapless jumping.
N-HTRS Canopy
North’s N-HTRS high-tenacity polyester ripstop canopy is designed for low weight, tear resistance, low porosity and long-term profile stability. Refined transition panels maintain a clean aerodynamic shape close to the leading edge.
Lighter Reinforcement
North removed unnecessary weight while retaining reinforcement in high-load areas. Two-ply canopy reinforcement along the trailing edge allows the kite to twist more naturally, while Dacron remains at the wingtips for durability.
17% Lighter Bladder Material
All sizes use bladder material that North states is 17% lighter than the previous bladder material. Reducing weight at the front of the kite improves static balance, low-wind behavior, steering response and drift.
Low-Drag Pulley-Free Bridle
Pre-loaded and measured bridle lines reduce shrinkage and elongation. Removing pulleys lowers drag and moving parts while producing a direct, precise connection between the control bar and kite.
Lower-Aspect Wave Shape
The lower-aspect outline places more useful area through the center of the canopy. This supports drift, low-end power, pivot steering and fast relaunch. It also makes the kite less focused on high-speed boosting than a high-aspect Big Air design.
Surf-Tough Protection
DuraLite seam protectors guard the leading-edge and strut seams against abrasion. Kevlar-reinforced strut connections add support at high-load junctions, while bridle deflectors help prevent control lines from catching around the struts.
HyperFlow Inflation
North’s high-volume single-point inflation system uses large-diameter hoses for rapid inflation and deflation. The bayonet-style main valve works with most kite pumps without a separate adapter.
What Changed for 2024?
- Fully redesigned canopy geometry and panel layout
- Lower aspect ratio for improved drift and stability
- Smaller leading-edge diameter for less pull on the wave
- More swept tips for faster relaunch and better drift
- Lighter, thinner wingtips for earlier turning initiation
- New segmented curved arc with smoother profiles
- Longer, more progressive depower travel
- Lighter bladder material throughout the complete size range
- Improved low-end efficiency without reducing the published high end
- Better catch and hangtime for strapless rotations
Standard and Premium Version Clarity
The 2024 Carve was offered in one standard Dacron construction. There is no 2024 Carve Pro, Ultra, NXT or ALUULA kite.
Its lighter weight comes from refined geometry, reduced reinforcement, lighter bladders and efficient three-strut construction—not from an ALUULA or N-Max airframe. “Pro” versions within North’s 2024 surf collection refer to certain surfboards, not to a premium Carve kite.
Riders should choose the Carve for its wave-specific shape and handling rather than expecting the stiffness, speed or price of a premium composite kite. Its conventional Dacron frame also offers familiar durability and repair characteristics for riders who frequently launch from beaches.
North Kite Comparison
| Model | Construction | Shape and Handling | Best For | Why Choose It Instead? |
|---|---|---|---|---|
| 2024 Carve | Dacron frame; 3 struts; N-HTRS canopy | Low aspect, fast pivot turns, direct feedback and excellent drift | Wave riding and strapless freestyle | Choose it when surf performance, drift and depower through turns are the priorities. |
| 2024 Reach | Lightweight Dacron frame; 3 struts | More all-around shape with wider discipline coverage | Beginner progression, freeride, jumping, foil and occasional waves | Choose it when you need one versatile kite for multiple riding styles and easier general progression. |
| 2024 Code Zero | Lightweight N-Max Dacron; 1 strut | Very light, fast and efficient with excellent drift | Dedicated kite foiling, light wind and small waves | Choose it for lighter handling and better marginal-wind foil efficiency; choose the Carve for more powered surf support. |
| 2024 Orbit | Dacron frame; 5 struts | High aspect, forward flying and highly stable when powered | Big Air, boosting, hangtime and powered freeride | Choose it when height, hangtime and strong-wind stability matter more than drift and pivot steering. |
Who Is the 2024 North Carve Best For?
Best Match
- Intermediate and advanced wave riders
- Strapless freestyle riders practicing rotations and aerial transitions
- Surfers who need dependable drift in onshore or down-the-line waves
- Riders who prefer fast pivot steering and light, direct feedback
- Locations with gusty wind and changing line tension
- Riders who want a wave kite that remains capable for freeride sessions
Consider Another Kite
- Beginner lessons: choose the Reach for broader progression.
- Dedicated kite foiling: choose the lighter Code Zero.
- Big Air: choose the five-strut Orbit.
- Unhooked wakestyle: choose the Pulse.
- Racing: choose a race-specific foil kite.
- Maximum light-wind efficiency: choose a specialized single-strut or foil kite.

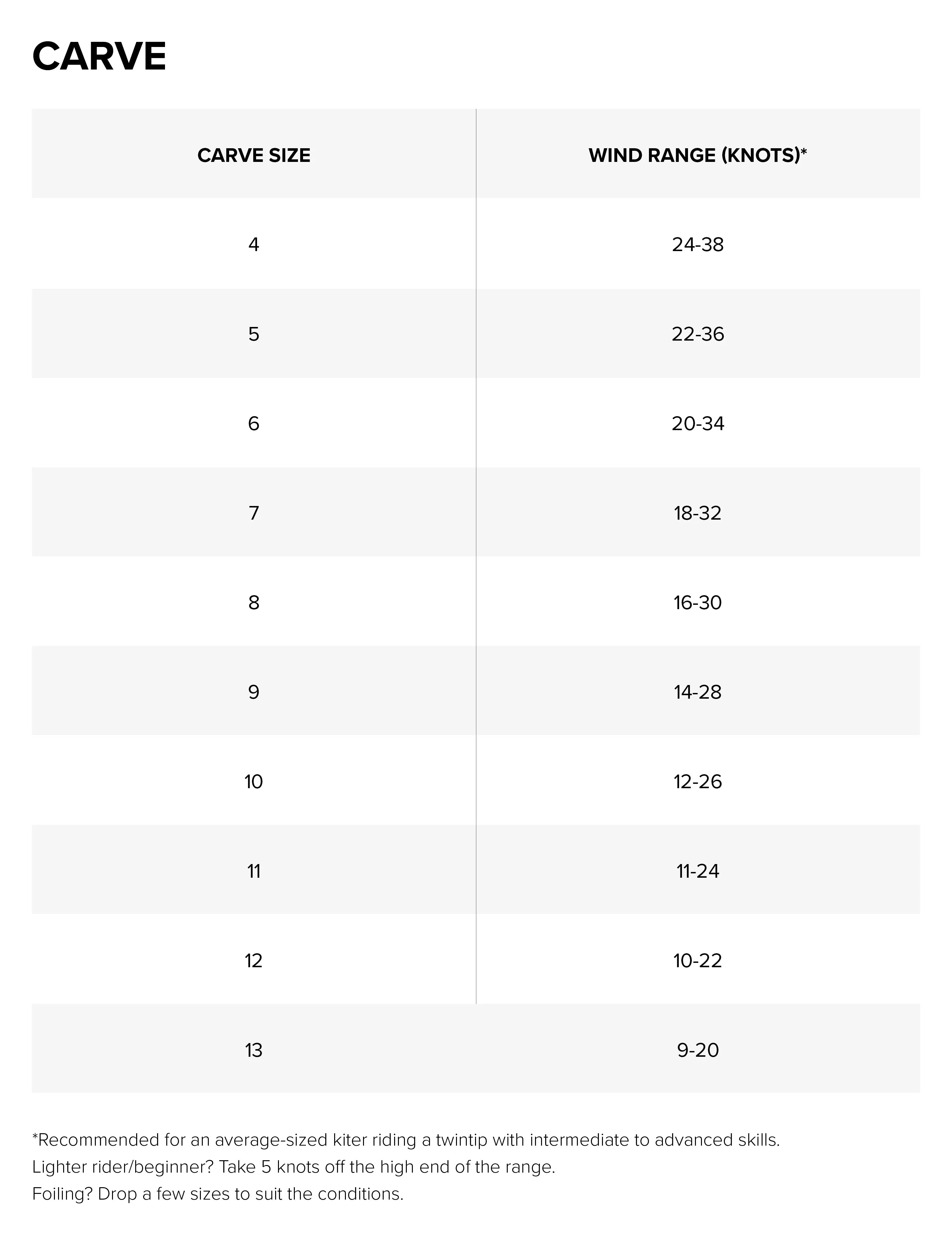

Official Sizes and Wind Ranges
| Kite Size | Official Wind Range | Typical Use |
|---|---|---|
| 4m | 24–38 knots | Very strong-wind surf and lightweight riders |
| 5m | 22–36 knots | Strong-wind wave riding |
| 6m | 20–34 knots | High-wind surf and strapless control |
| 7m | 18–32 knots | Powered wave riding and strapless freestyle |
| 8m | 16–30 knots | Versatile medium-to-strong-wind surf size |
| 9m | 14–28 knots | All-around wave and freeride use |
| 10m | 12–26 knots | Moderate-wind surf and strapless sessions |
| 11m | 11–24 knots | Moderate-to-light-wind wave riding |
| 12m | 10–20 knots | Light-wind surf and freeride |
| 13m | 9–20 knots | Maximum Carve low-end coverage |
Size guidance: Manufacturer wind ranges are approximate. Rider weight, board size, current, air density, wave conditions and experience can significantly change the correct kite size.
Wave riders frequently use a smaller kite than twin-tip riders because a surfboard generates more lift and the goal is often to minimize pull on the wave face.
Control Bar and Line Setup
Pair the Carve with a compatible four-line North Navigator or Navigator Pro Control System. North control systems use a low-V configuration and are supplied with adjustable 22m flying lines.
- 38–43cm bar: North’s freeride recommendation for kites smaller than 8m.
- 45–50cm bar: North’s freeride recommendation for kites smaller than 11m.
- 50–55cm bar: North’s freeride recommendation for kites larger than 8m.
- Shorter lines can create tighter turns and reduce power through the window for wave riding.
- Begin with the lighter rear-line setting before testing the firmer, more direct option.
Bar-size recommendations overlap because riders can use bar width to adjust turning leverage and response.
What’s Included
- 2024 North Carve kite
- Kite bag
- Repair kit
Control bar and pump are sold separately unless specifically included in a Windance package.
Frequently Asked Questions
Is the 2024 North Carve suitable for beginners?
The Carve has smooth depower and easy relaunch, but it is primarily designed for intermediate and advanced wave riders. Beginners will generally progress more easily on the North Reach because it provides broader freeride versatility and more forgiving all-around handling.
Does the 2024 North Carve use ALUULA?
No. It uses a conventional Dacron airframe with an N-HTRS high-tenacity ripstop canopy. There is no 2024 Carve Pro, Ultra or ALUULA version.
How many struts does the North Carve have?
The Carve uses three struts. This provides enough canopy support for powered surf and strapless jumping while keeping the kite light enough for responsive steering and efficient drift.
What is the difference between the Carve and Reach?
The Carve has a lower-aspect wave shape with faster pivot turns, more drift and less pull across the wave. The Reach is the more versatile choice for beginner progression, freeride, jumping, foiling and occasional wave riding.
What is the difference between the Carve and Code Zero?
The three-strut Carve provides more structure and powered control for wave riding and strapless freestyle. The single-strut Code Zero is lighter and more efficient for dedicated kite foiling and marginal-wind sessions.
Can the North Carve jump?
Yes. It offers smooth lift, useful hangtime and dependable catch for strapless tricks and recreational twin-tip jumping. The Orbit remains the better North kite for maximum boost, hangtime and powered loops.
Is the Carve good in onshore waves?
Yes. North designed the bridling and static balance to maintain drift while sheeted in or out, making the Carve effective in both onshore and down-the-line waves.
