Premium Carbon • Complete Parawing • Dedicated Downwind
A lightweight, direct and purpose-built carbon setup for experienced riders chasing long downwind runs.

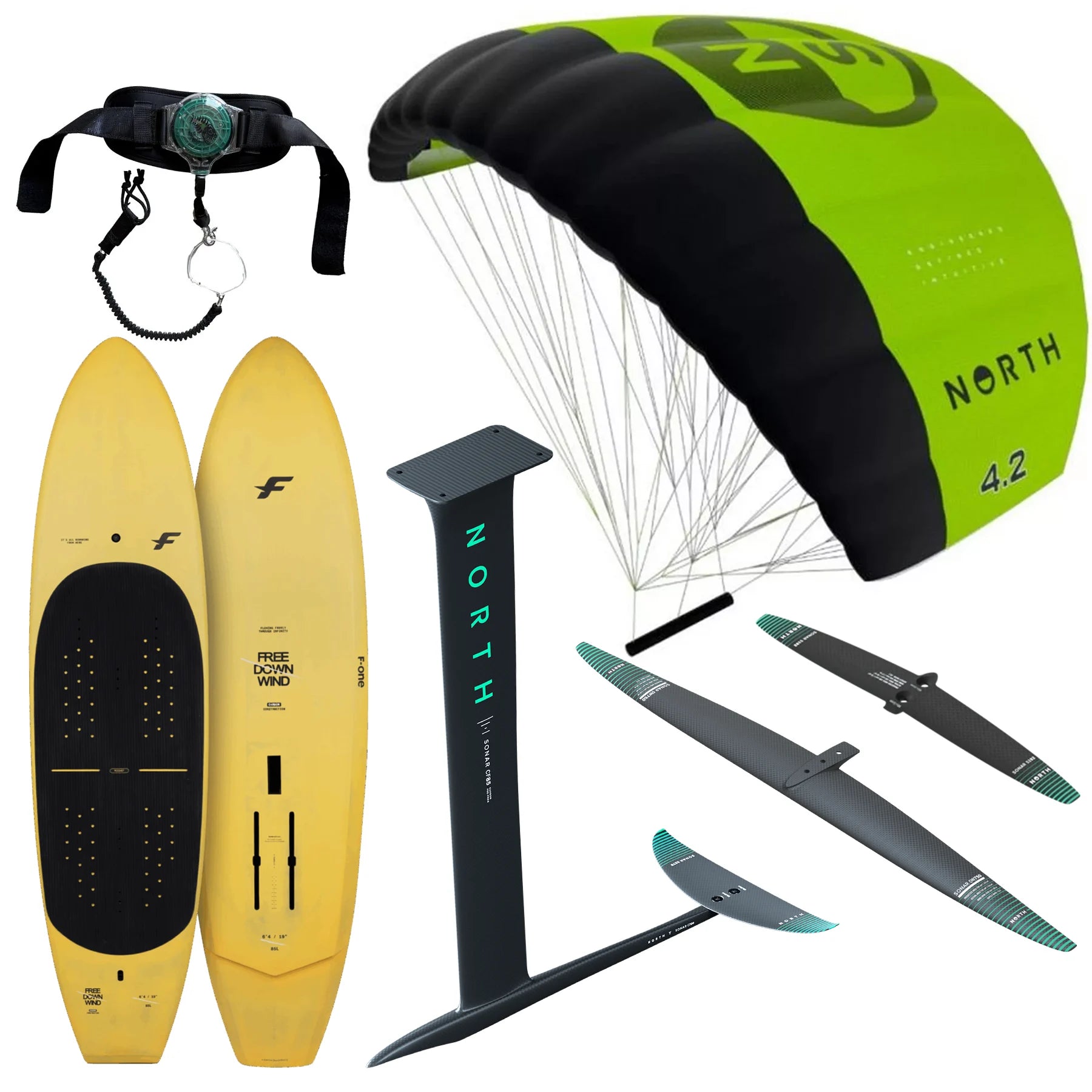

This premium complete parawing package pairs the compact single-skin 2026 North Ranger with the lightweight F-One ROCKET FREE DOWNWIND CARBON board and an efficient North Sonar DW carbon foil. The board’s long, stable outline helps generate takeoff speed; its stiff carbon construction improves pumping response and foil feedback once airborne. Add your choice of DW900 or DW1100, the fixed S192 Glide stabilizer and a Blue Planet retractable waist leash, and the result is a focused system for launching with the Ranger, packing it away and connecting open-water bumps with less unnecessary drag and weight.
Best for: intermediate and experienced foilers who are committed to parawing and downwind riding and value lower board weight, higher stiffness, direct foil response and a cleaner retractable leash system. Choose the standard FREE DW complete package when value and durability matter more than the Carbon board’s reduced weight and sharper response.
The Ranger’s single-skin canopy, extra-short bridles and on-water backpack form a compact system designed to be collapsed and stored after takeoff.
HD Foam Carbon Composite reduces weight and increases stiffness for more immediate pumping response, clearer foil feedback and easier board control in the air.
The CF85 mast, C700 carbon fuselage, DW front wing and fixed S192 tail create an efficient platform for low-speed lift, pumping and long glide between bumps.

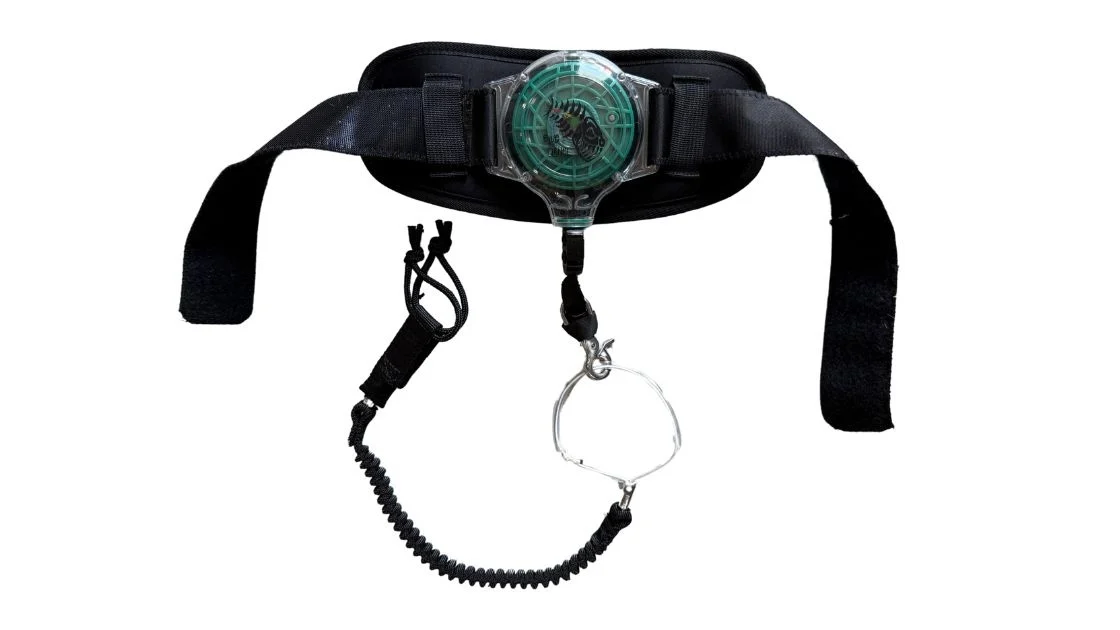

The Blue Planet reel keeps excess leash line retracted and off the water, while the padded belt and long shock cord provide up to 14ft of extension during a fall.
| Component | Included Configuration |
|---|---|
| 2026 North Ranger Parawing | One parawing: choose 3.2 or 4.2m; lightweight carbon control bar, Depower Tab and on-water backpack included |
| 2026 F-One ROCKET FREE DOWNWIND CARBON Board | One Carbon board: choose 6'4 / 85L or 6'8 / 95L; installed traction pad, integrated carry handle and extended 90mm Carbon Twin-Tracks included |

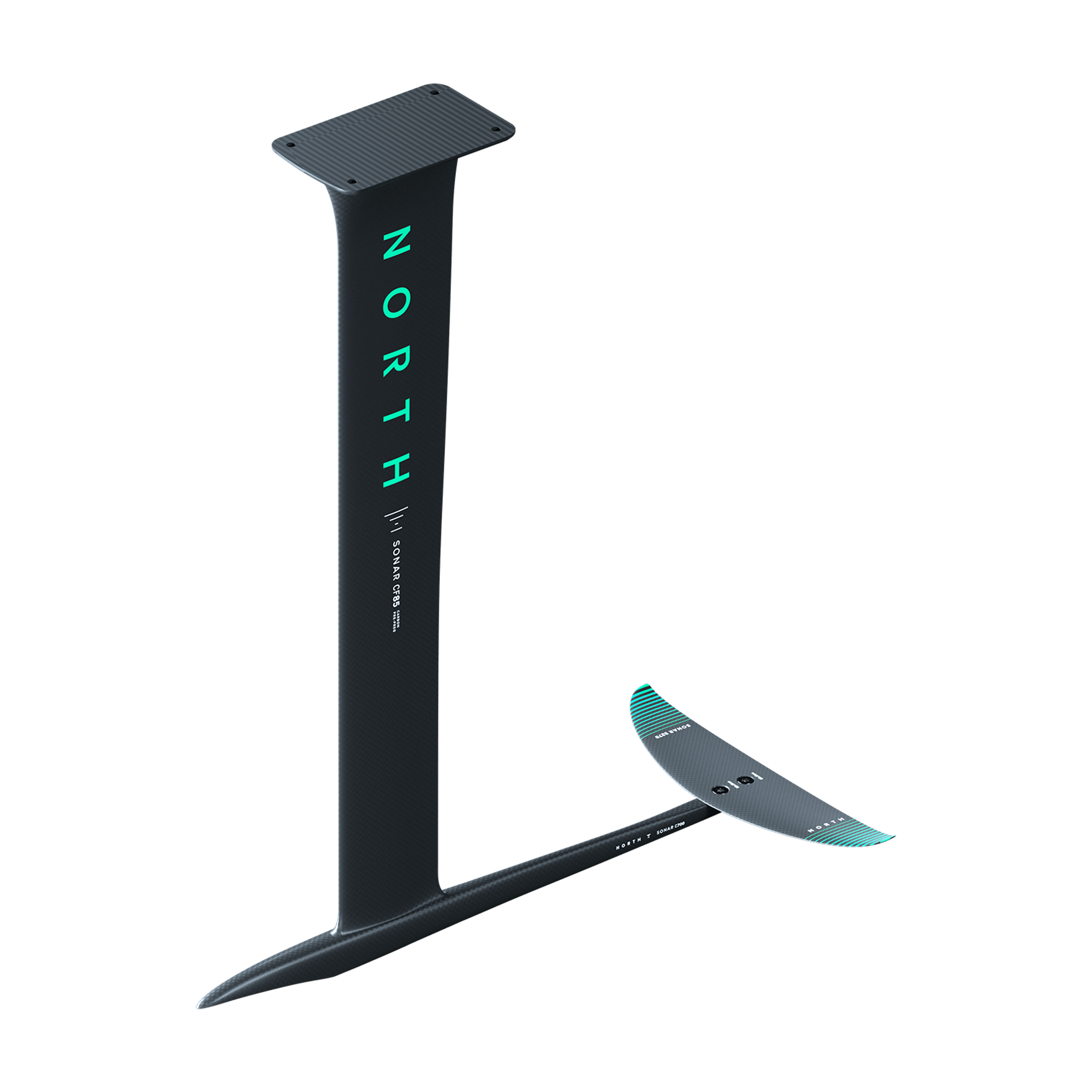

| North Sonar Carbon Foil Edition | Fixed CF85 pre-preg carbon mast with cover, C700 carbon fuselage, S270 carbon stabilizer with cover, tool kit, fuselage and stabilizer screw packs, and Sonar CF Edition travel bag |
| North Sonar Downwind Front Wing | One front wing: choose DW900 or DW1100; protective cover and correct front-wing screw pack included |

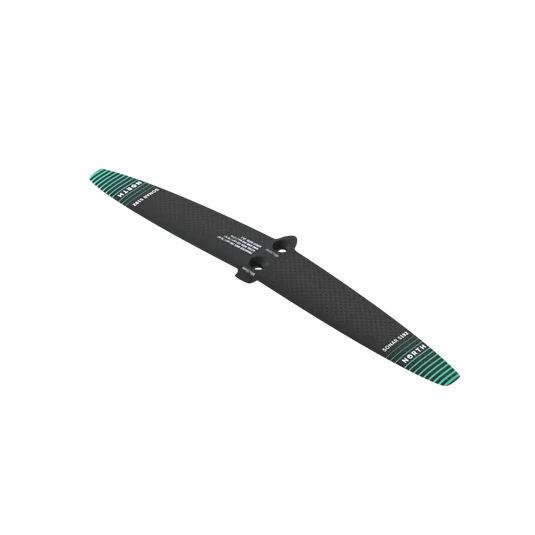

| North Sonar Glide Stabilizer | One fixed S192 High Modulus Carbon stabilizer; protective cover and stabilizer screw pack included |
| Blue Planet Retractable Reel Leash + Belt + Shock Cord Combo | One retractable reel leash, custom padded waist belt and long shock cord; up to 14ft of total extension |
Not included: foil-to-board mounting screws and track nuts, boardbag, helmet, personal flotation or impact vest, communication and visibility equipment.

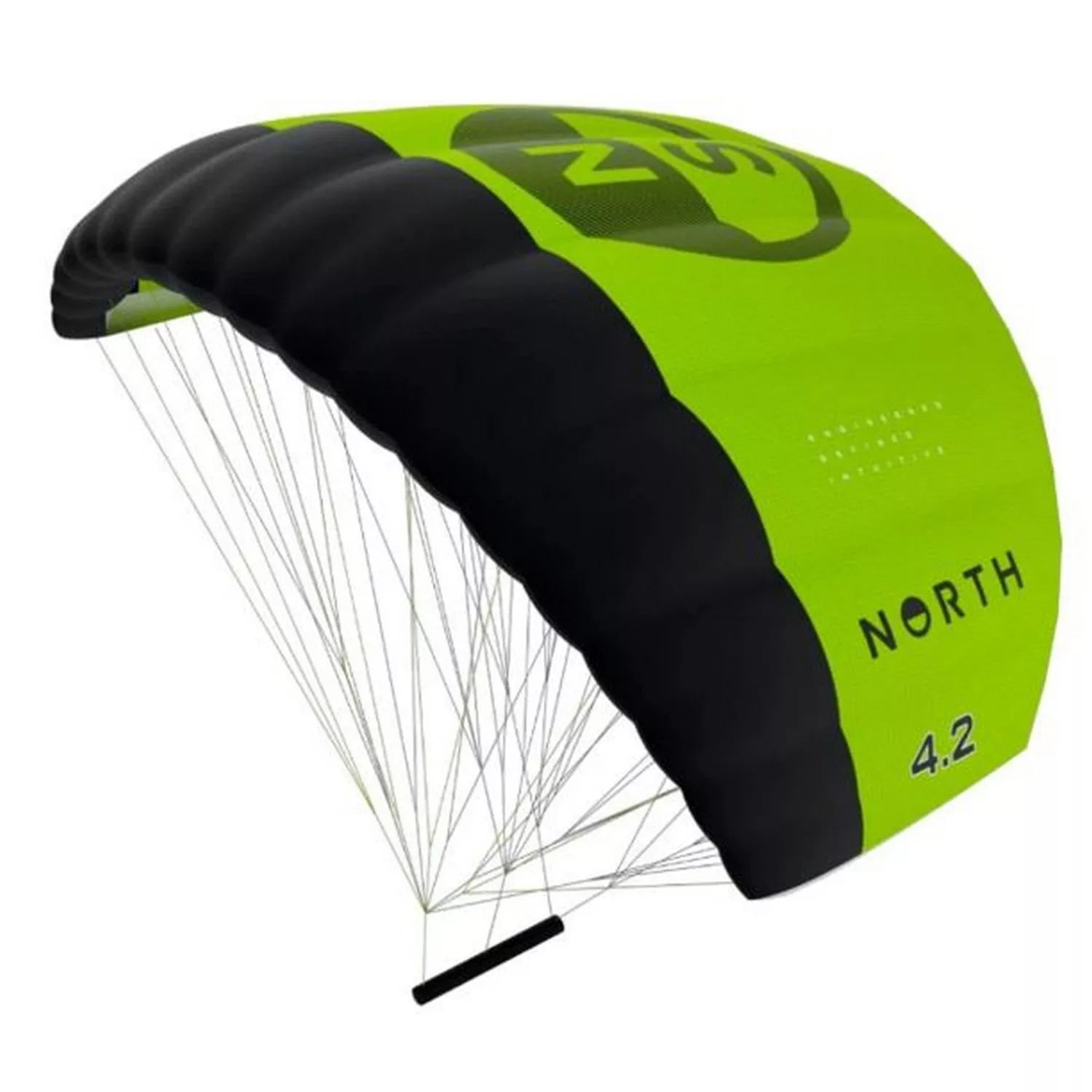

The Ranger is the specialized power source in this system. Its single-skin design, short bridle layout and compact on-water backpack make it especially well suited to riders who want to use wind power for takeoff and then remove the parawing from their hands to ride swell freely.

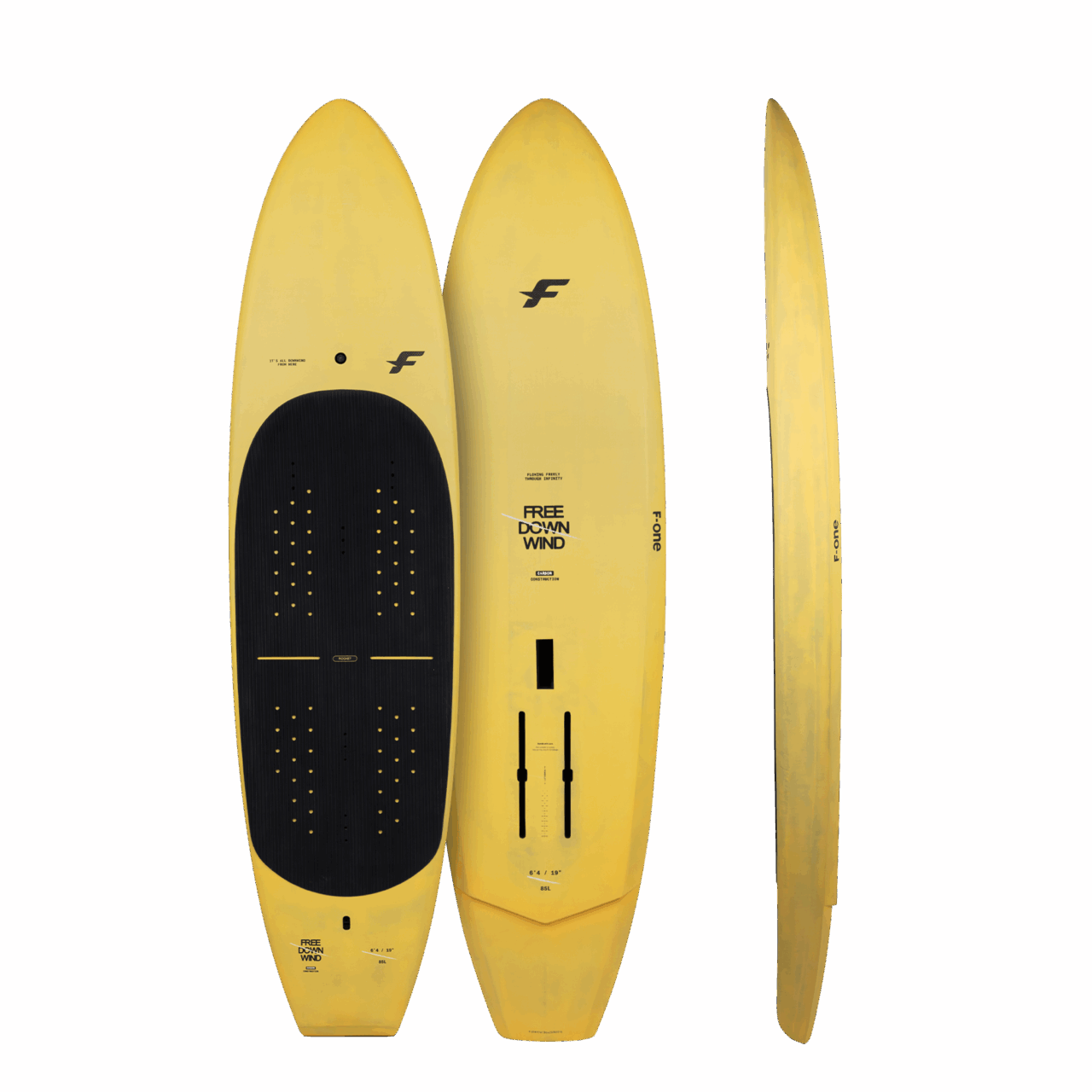

The ROCKET FREE DOWNWIND CARBON supports the most demanding part of that process: building enough speed to lift onto foil. Its elongated waterline, wider nose, squarer rails and carefully distributed volume provide glide and start stability, while the carbon sandwich construction reduces swing weight and gives the rider a more immediate connection to the foil after takeoff.
Under the board, the DW900 or DW1100 supplies efficient lift and forward carry. The fixed S192 adds predictable pitch support and an easy pumping rhythm, while the CF85 mast offers useful clearance for chop, rolling swell and banked turns. The retractable waist leash keeps excess line managed during the ride without limiting separation when the shock cord extends in a fall.
This is a premium performance package, not a first-time learn-to-foil setup. Riders should already have reliable takeoff, foil-height and directional control before adding parawing pack-away or open-water downwind technique.
The Carbon and standard Bamboo versions of the ROCKET FREE DW share the same proven shape, volume options and downwind program. The premium difference is construction: the Carbon board uses a high-density foam, fiberglass and carbon sandwich that is lighter and stiffer, with Carbon Twin-Tracks for a more direct mast connection.
| Feature | FREE DW Carbon in This Package | Standard FREE DW |
|---|---|---|
| Shape and program | Elongated, stable downwind outline | Same outline and intended use |
| Construction | HD Foam Carbon Composite | Bamboo Deck Construction |
| 85L listed weight | Approx. 5.1kg / 11.2lb | Approx. 5.4kg / 11.9lb |
| 95L listed weight | Approx. 5.4kg / 11.9lb | Approx. 5.8kg / 12.8lb |
| Ride emphasis | Lower swing weight, sharper pumping response and more direct foil feedback | Strong value, proven shape and a slightly more forgiving investment |
Listed board weights are manufacturer specifications and individual production boards may vary slightly. The Carbon upgrade improves response; it does not replace the technique, conditioning or safety planning required for downwind foiling.
The Sonar Carbon Foil Edition is supplied with an S270 stabilizer as part of its standard lower assembly. That stabilizer cannot be removed from the Carbon Foil Edition product, so it remains inside the package.
The additional fixed S192 is included because its high-aspect Glide profile is the better match for this dedicated DW900/DW1100 setup. It provides efficient glide, reliable pumping and the pitch support that makes the DW foil easier to manage. The S270 can be kept as a more general-purpose alternate tail or spare for another Sonar configuration.
You will receive both stabilizers intentionally: the S270 packed with the Carbon Foil Edition and the fixed S192 for the DW front wing.
Both package sizes use the same ultra-light, stiff HD Foam Carbon Composite construction and include an installed traction pad, integrated carry handle and extended 90mm Carbon Twin-Tracks. Choose enough volume to support your weight, start technique and water conditions while remembering that both boards retain a narrow downwind outline.
| Board | Dimensions | How to Choose |
|---|---|---|
| 6'4 / 85L |
6'4 × 19 × 5.5in 193 × 48.3 × 14cm Approx. 5.1kg / 11.2lb |
The more compact and responsive option for lighter or highly experienced riders who are comfortable starting on lower volume. |
| 6'8 / 95L |
6'8 × 19.5 × 5.6in 203.2 × 49.5 × 14.2cm Approx. 5.4kg / 11.9lb |
Adds flotation, waterline and start stability for larger riders, choppier water or anyone who wants more support before takeoff without leaving the performance Carbon construction. |
The 95L is the more accessible choice, but neither size is a wide beginner platform. Rider weight, balance, foil experience, water state and front-wing size should all guide the final board selection.

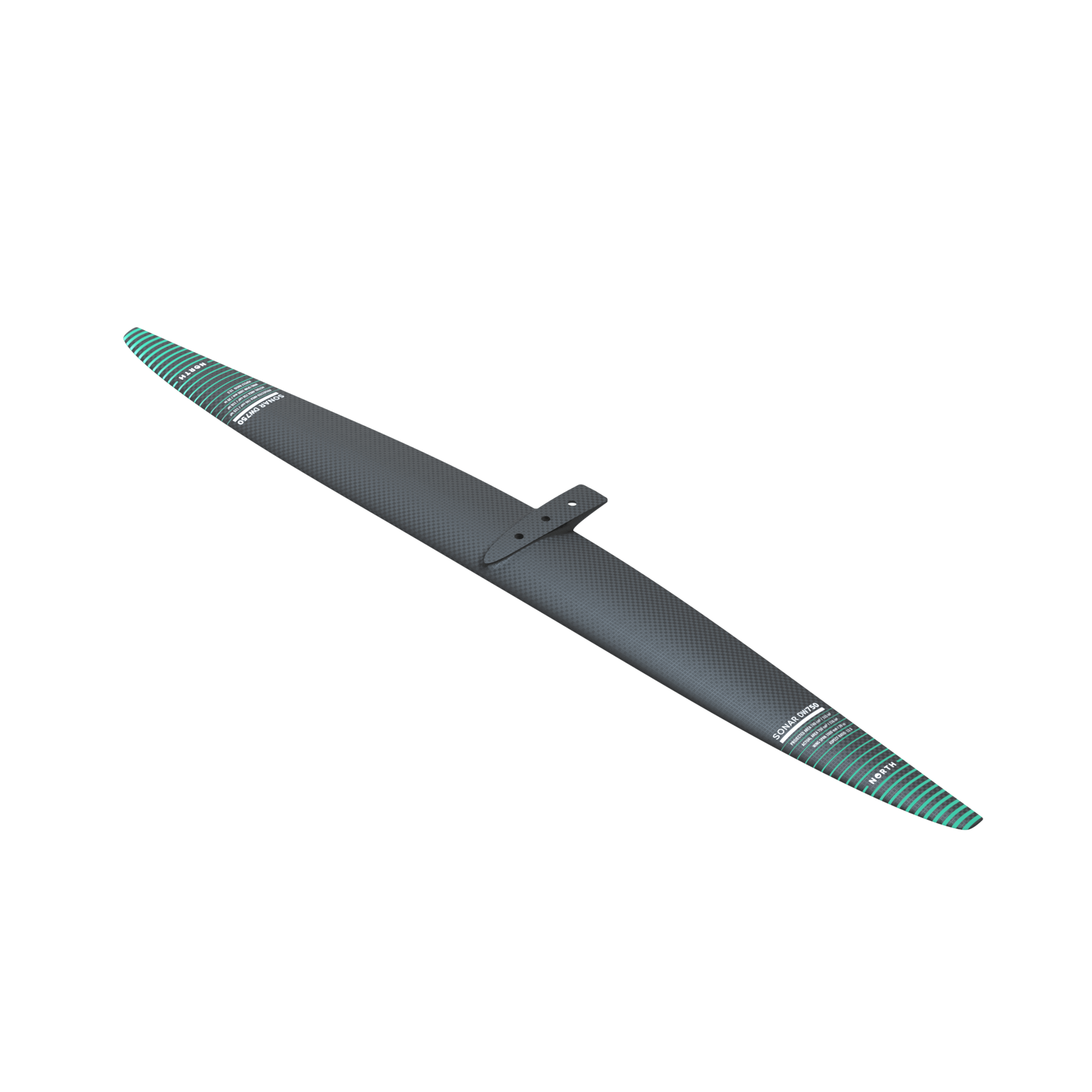

Both front wings are paired with the fixed S192 stabilizer. Choose the DW900 for more speed and response or the DW1100 for additional low-speed lift, carrying capacity and support through softer bumps.
| Front Wing | Span / Aspect Ratio | How It Rides with S192 |
|---|---|---|
| DW900 |
900cm² 1080mm span 13.0 AR |
The faster and more maneuverable choice. The S192 adds support, stability and a manageable pumping rhythm while preserving efficient glide. |
| DW1100 |
1100cm² 1150mm span 12.0 AR |
More low-speed lift for softer swell, lighter wind, additional rider weight or a more supportive entry into dedicated downwind riding. |
The DW1100 is the more supportive option. Choose the DW900 when you already generate takeoff speed reliably and prioritize higher speed, tighter response and less front-wing area.
The 3.2m keeps the setup compact for medium-to-strong wind, while the 4.2m adds useful low-end pull for moderate conditions, larger riders and combinations that need more help accelerating. Use these ranges as practical starting points:
| Ranger Size | Wind Range | Riding Emphasis |
|---|---|---|
| 3.2m | 18–26 knots | Medium-to-strong wind, compact handling and less canopy to manage during powered downwind sessions. |
| 4.2m | 14–20 knots | Moderate wind with additional starting pull for larger riders or setups requiring more low-end power. |
These ranges are based on an 85kg rider using a DW1100 foil and 96L board. Rider weight, board volume, foil size, technique, current and swell can all change the correct Ranger size.
| Priority | Board and Foil Direction | Ranger Direction |
|---|---|---|
| Maximum speed and response | 85L FREE DW Carbon + DW900 + fixed S192 | Choose 3.2 or 4.2m for the actual wind—not for the foil size. |
| Balanced premium downwind setup | Choose 85L or 95L by rider weight; DW900 for speed or DW1100 for more support | The 3.2m and 4.2m cover different wind ranges, so conditions determine canopy size. |
| Maximum package support | 95L FREE DW Carbon + DW1100 + fixed S192 | Use the 4.2m only when conditions fall within its intended 14–20-knot range. |
These are starting points, not mandatory combinations. Select the parawing for wind strength, then choose board volume and foil area for rider weight, ability, swell energy and surface conditions.
Long boards, foils and parawing equipment create several lines and hard components around the rider. The Blue Planet system keeps excess board-leash line retracted instead of dragging behind the board, helping reduce water drag and the opportunity for loose line to interfere with the foil or parawing leash during normal riding.
During a fall, the long shock cord allows the system to extend to a total of approximately 14ft. The padded waist belt keeps the connection away from the rider’s ankles and leaves the legs free for starts, pumping and recovery.
Leash care matters: flush the reel through its wash hole after saltwater use, follow the product’s lubrication guidance, and inspect the belt, cord, connectors and spring action before every session. No leash eliminates entanglement or impact risk; use proper fall technique and choose equipment appropriate for the location and conditions.
The F-One FREE DW Carbon uses industry-standard 90mm Carbon Twin-Tracks, and the Sonar CF85 mast plate uses a compatible 165 × 90mm four-bolt pattern. The extended tracks give the rider room to fine-tune mast position and front-foot pressure for the selected board and foil combination.
Mounting hardware is not included: obtain the correct foil-to-board screws and track nuts before assembly. Use hardware compatible with the North mast plate, F-One tracks and required thread engagement, and follow the manufacturers’ assembly and torque instructions.
The package includes a North Ranger, ROCKET FREE DW Carbon board, complete Sonar carbon foil with your chosen DW front wing, fixed S192 stabilizer and Blue Planet reel leash system. Foil-to-board screws and track nuts, personal safety equipment and a boardbag are not included.
No. The stable FREE DW outline, DW1100 and S192 can make takeoff and pitch control more supportive, but the narrow board, high-aspect DW foil and specialized Ranger still require established foiling skills. Riders should already control takeoff, direction and foil height before learning pack-away or open-water downwind technique.
Both boards share the same downwind shape. Choose Carbon for lower listed weight, increased stiffness, a more direct foil connection and faster pumping response. Choose the standard Bamboo version when you want the same shape and program at a lower package price.
The Carbon Foil Edition comes with an S270 as standard. This package adds the fixed S192 because its Glide profile and supportive pitch behavior are better matched to the DW900 and DW1100. You receive both stabilizers intentionally.
No. The additional S192 is fixed in this package and works with both available DW front wings. The only foil choice required is DW900 or DW1100.
Choose DW900 for more speed, maneuverability and a compact response. Choose DW1100 for earlier lift, additional carrying capacity, softer swell, lighter wind or a more supportive entry into downwind riding.
Choose 85L for the lightest, most responsive setup when your weight and start technique allow it. Choose 95L for more flotation, waterline and stability in chop or marginal power. Volume alone does not determine stability, so consider rider weight, balance, foil experience and local water conditions together.
Choose Ranger for dedicated downwind foiling and the most compact pack-away experience. Choose Rover for smoother general power delivery, stronger upwind performance and a broader freeride program.
No. The Ranger is a non-inflatable single-skin parawing controlled through short bridles and the included carbon bar. It does not use an inflatable leading edge or center strut.
Flush the reel through its wash hole after saltwater sessions, use the oiling port as directed, and regularly inspect the belt, long shock cord, connectors and replaceable stainless steel spring. Do not use the leash if any component is damaged or the reel does not operate correctly.
Requirements depend on location, but open-water downwinders call for appropriate training, flotation, visibility and communication equipment, route and weather planning, and reliable assistance. Check wind, swell, current and exit options, and do not attempt unfamiliar downwind routes alone.
