Slingshot One-Lock Integrated Mast — Mast Only

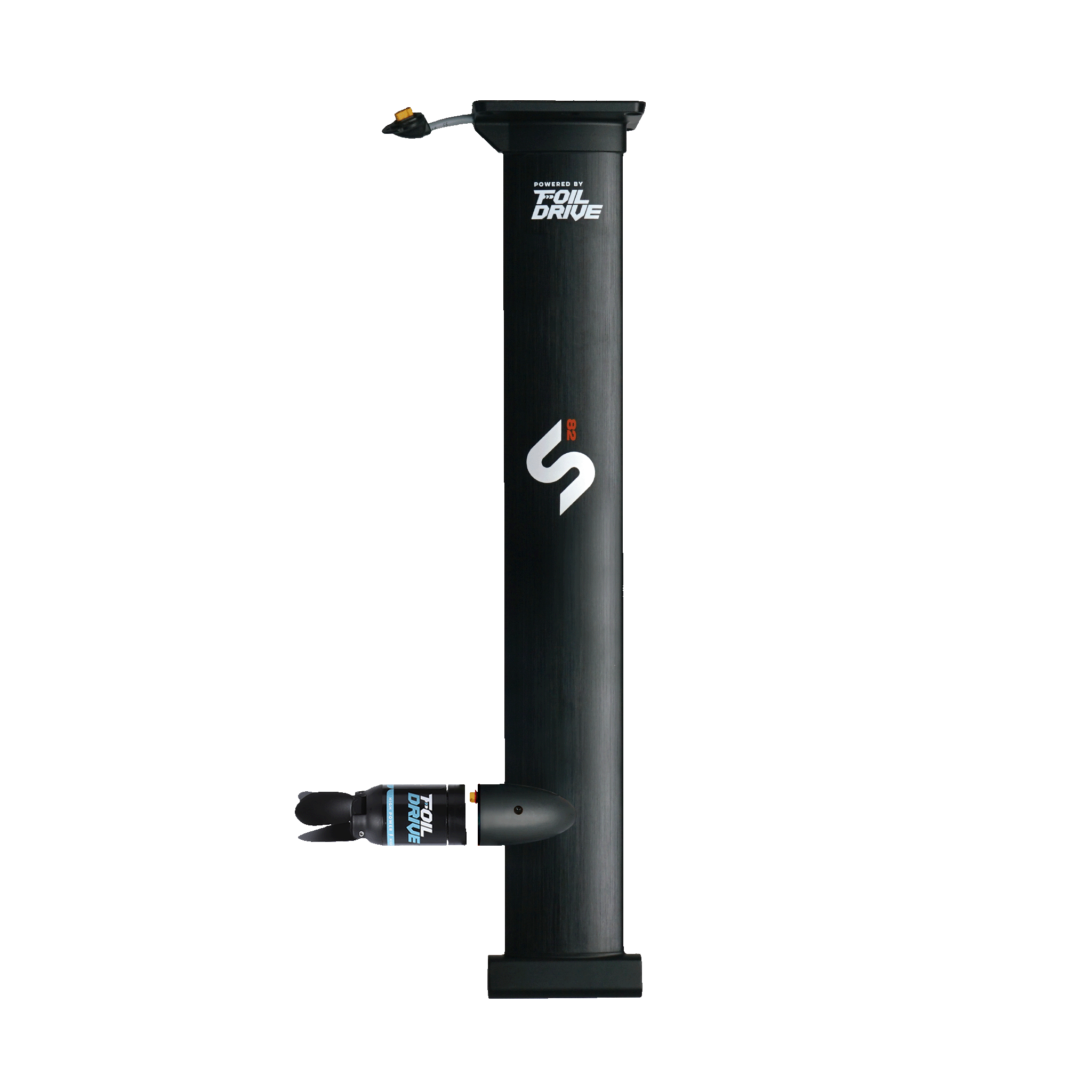

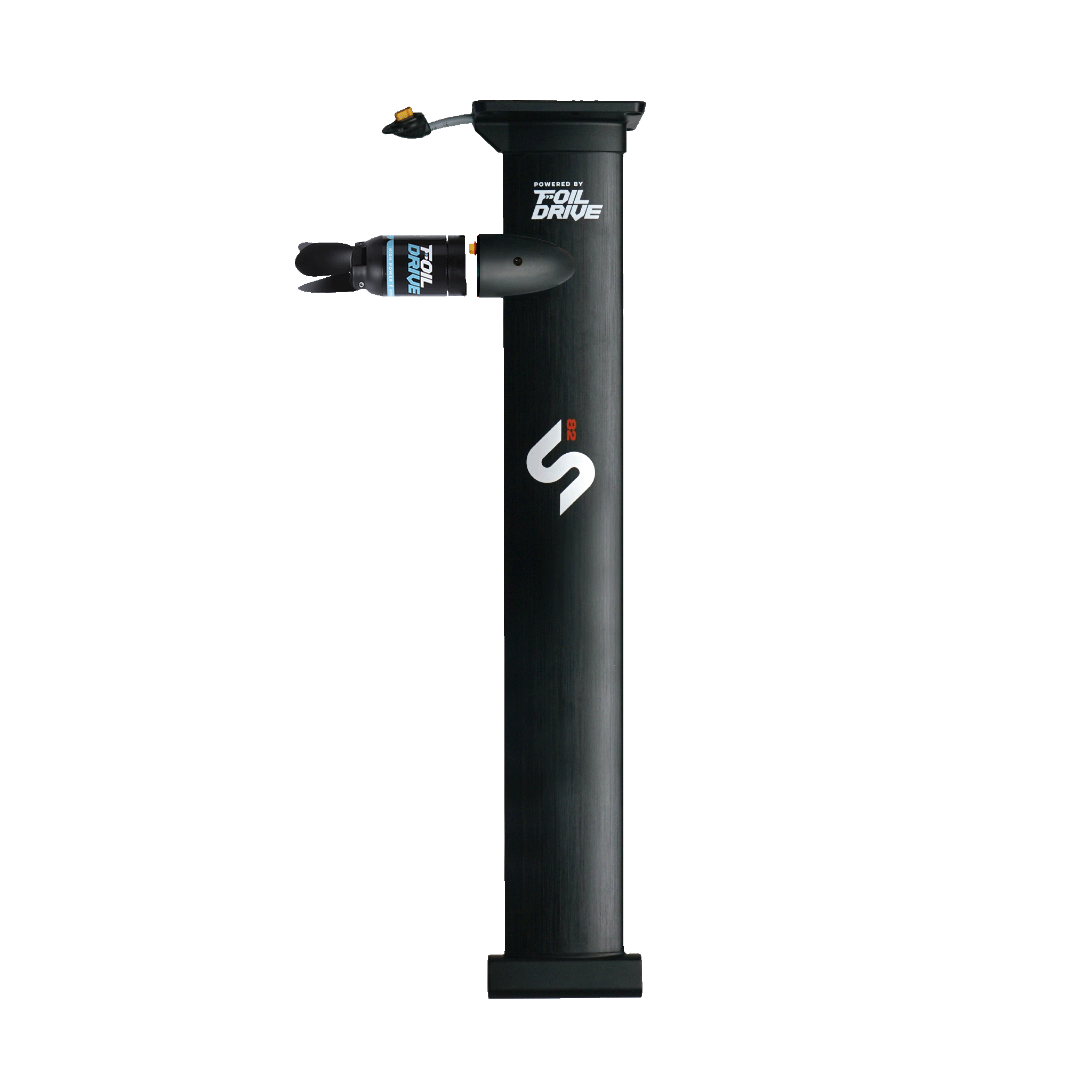

Foil Drive x Slingshot One-Lock V2 Integrated Mast
A streamlined 6061 aluminum mast with internal Foil Drive integration and a low-profile Mini Pod.
The Foil Drive x Slingshot One-Lock V2 Integrated Mast combines Slingshot’s fast One-Lock foil connection with clean internal Foil Drive cable routing. The integrated design eliminates the external cable-and-pod arrangement used on universal installations, creating a cleaner setup with reduced drag and fewer exposed components.
Built from lightweight 6061-grade aluminum, the mast uses a balanced 118mm chord, an optimized One-Lock collar and a compact Mini Pod. Choose the 17cm Assist motor position for surf, downwind and wing foiling, or the deeper 70cm eFoil position for continuous powered riding and flatwater cruising.
- Mast Only
- Motor Not Included
- 6061 Aluminum
- 118mm Chord
- One-Lock Connection
- 17cm Assist
- 70cm eFoil
Need the High Power Motor?
This product includes the integrated mast only. If you do not already own a compatible Foil Drive V2 Motor, choose the complete mast and High Power Motor bundle.
Shop Mast + High Power MotorWho Should Choose the Mast-Only Version?
You Already Own a V2 Motor
Choose this version if you already own a compatible Foil Drive Standard V2 Motor or High Power V2 Motor and want to transfer it to the Slingshot integrated mast.
You Want a Spare Mast
The mast-only version is also suitable for riders building an additional Slingshot One-Lock setup around an existing Foil Drive motor.
Important: A Foil Drive motor, base unit, battery and controller are not included with this product.
Why Choose This Integrated Mast?
Cleaner Foil Drive Installation
Internal cable routing and the integrated Mini Pod remove the bulky external cable-and-pod arrangement found on universal retrofit installations.
Reduced Underwater Drag
The low-profile pod, smooth mast surface and optimized One-Lock collar help maintain cleaner water flow around the mast and foil connection.
6061 Aluminum Construction
Extruded 6061 aluminum balances stiffness, strength, corrosion resistance and accessible pricing without the cost of a full-carbon integrated mast.
Slingshot One-Lock Connection
The integrated collar connects directly with Slingshot One-Lock foil components while preserving the system’s fast assembly and streamlined underwater profile.
17cm Assist or 70cm eFoil?
| Configuration | Best For | How It Rides |
|---|---|---|
| 17cm / 7" Assist | Surf foil, downwind, wing foil and hybrid powered foiling | The motor sits close to the board and provides short bursts of power for takeoff, reaching the lineup or traveling upwind. Once on foil, the motor can rise out of the water to reduce drag. |
| 70cm / 27.5" eFoil | Flatwater cruising, leisure foiling and continuous powered riding | The motor sits deeper on the mast and remains submerged while foiling, providing consistent propulsion without relying on waves or wind. |
The 17cm and 70cm measurements describe the motor position—not the overall mast length. The selected position is fixed and cannot be adjusted.
Key Construction Features
Optimized 118mm Chord
The 118mm mast chord balances stiffness, efficiency and weight for direct feedback and confident control.
Low-Profile Mini Pod
The compact integrated pod reduces frontal area around the motor and helps water flow smoothly around the powered system.
Optimized One-Lock Collar
The streamlined collar supports smooth water flow from the front wing through the stabilizer while maintaining a strong, responsive connection.
Anodized Finish
The smooth anodized surface improves corrosion resistance and helps reduce the vibration and humming sometimes associated with aluminum foil masts.
Compatibility
| Component | Compatibility | Important Note |
|---|---|---|
| Foil System | Slingshot One-Lock | Designed for the Slingshot One-Lock front wing and tail system. |
| Foil Drive Motors | Standard V2 and High Power V2 | The motor must be purchased separately or transferred from an existing compatible setup. |
| Assist MAX and Assist Slim | Compatible | The 17cm Assist cable position is configured for MAX and Slim systems. |
| Fusion | Compatible | The 17cm Assist configuration requires a Foil Drive Barnacle Cable Extender when paired with Fusion. |
What’s Included?
- 1 × Slingshot x Foil Drive One-Lock V2 Integrated Mast
- 2 × Integrated mast bolts
- 3 × M4 × 10mm motor plug bolts
- 1 × Slingshot x Foil Drive mast bag cover
Not included: Foil Drive motor, propeller set, base unit, battery, controller, Slingshot front wing and Slingshot tail.
Frequently Asked Questions
Does This Mast Include a Motor?
No. This is the mast-only version for riders who already own a compatible Standard V2 or High Power V2 Motor.
Can I Purchase It With a Motor?
Yes. Windance offers a separate bundle containing this mast and the Foil Drive Integrated Mast High Power Motor.
Can I Change the Motor Position?
No. Select either the 17cm Assist or 70cm eFoil configuration based on your intended riding style.
Does It Work With Older Slingshot Foils?
This mast is designed specifically for the Slingshot One-Lock platform and is not a direct replacement for older Phantasm or Hover Glide mast connections.
Starting Without a Compatible Motor?
Choose the bundle that includes the Foil Drive Integrated Mast High Power Motor.
View Mast + Motor Bundle
