Slingshot One-Lock Integrated Mast + Motor Bundle
Foil Drive x Slingshot One-Lock V2 Integrated Mast with High Power Motor
The streamlined Slingshot One-Lock aluminum mast paired with the Foil Drive Integrated Mast High Power Motor.
This bundle combines the Foil Drive x Slingshot One-Lock V2 Integrated Mast with the powerful Foil Drive Integrated Mast High Power Motor. Internal cable routing and a low-profile Mini Pod create a cleaner installation with less exposed hardware and reduced drag compared with a universal external motor setup.
The mast is constructed from lightweight 6061-grade aluminum with a balanced 118mm chord and an optimized One-Lock collar. The included High Power Motor is paired with a Three Blade Propeller Set for strong takeoff power and efficient powered foiling.
- High Power Motor Included
- Three Blade Propeller Set
- 6061 Aluminum
- 118mm Chord
- One-Lock Connection
- 17cm Assist
- 70cm eFoil
Already Own a Compatible V2 Motor?
You may not need this bundle. Choose the less expensive mast-only version and transfer your existing Standard V2 or High Power V2 Motor.
Shop Mast OnlyWhat This Bundle Includes
Slingshot One-Lock V2 Integrated Mast
A lightweight 6061 aluminum mast with internal Foil Drive routing, a low-profile Mini Pod and a streamlined Slingshot One-Lock collar.
Integrated Mast High Power Motor
Foil Drive’s High Power Motor provides strong acceleration and takeoff assistance and comes paired with the Three Blade Propeller Set.
Important: This bundle includes the mast and motor, but it is not a complete Foil Drive system. A compatible Assist MAX, Assist Slim or Fusion system, battery and controller are still required.
17cm Assist or 70cm eFoil?
| Configuration | Best For | How It Rides |
|---|---|---|

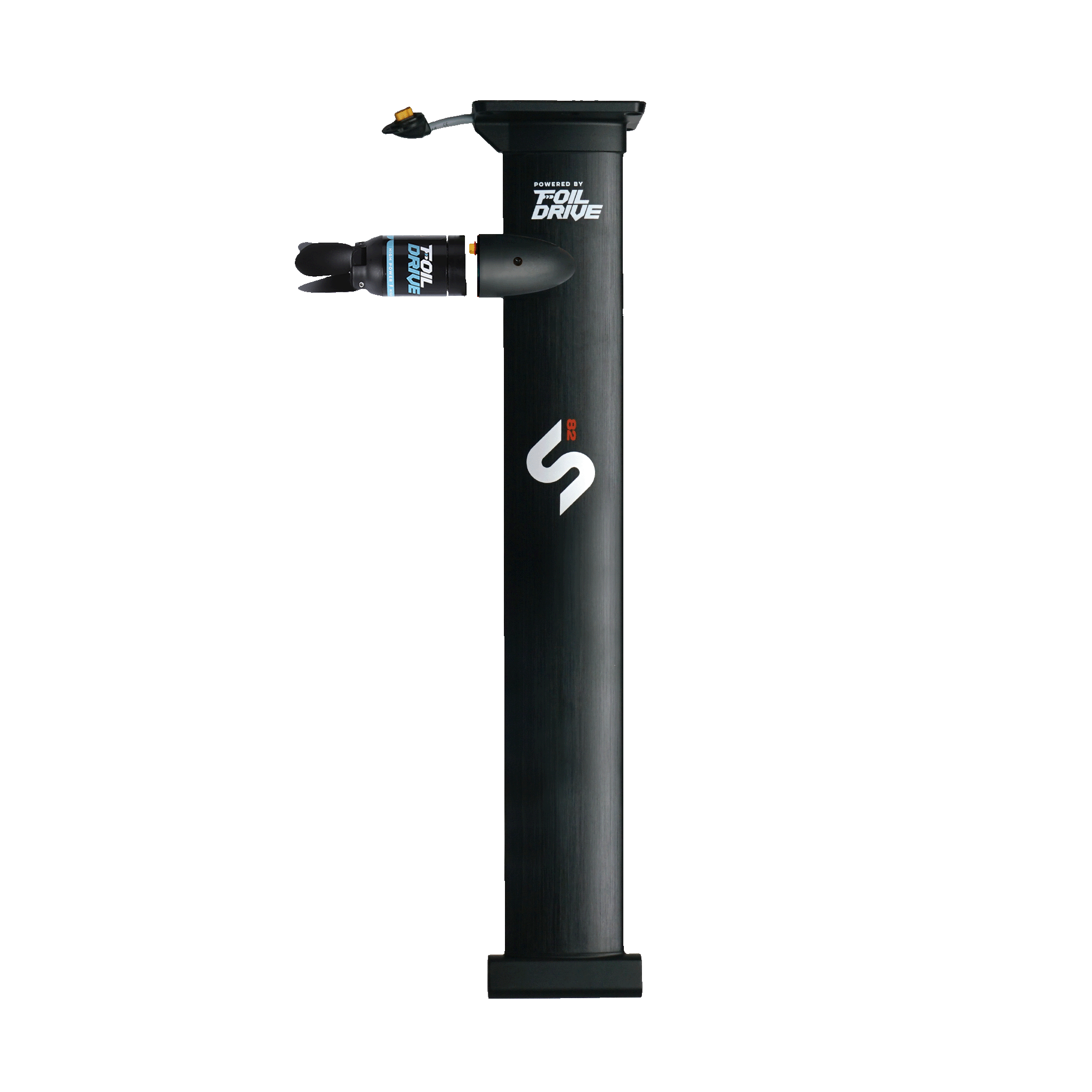

| 17cm / 7" Assist | Surf foil, downwind, wing foil and hybrid powered foiling | The motor sits close to the board and provides short bursts of power for takeoff, reaching the lineup or traveling upwind. Once on foil, the motor can rise out of the water to reduce drag. |

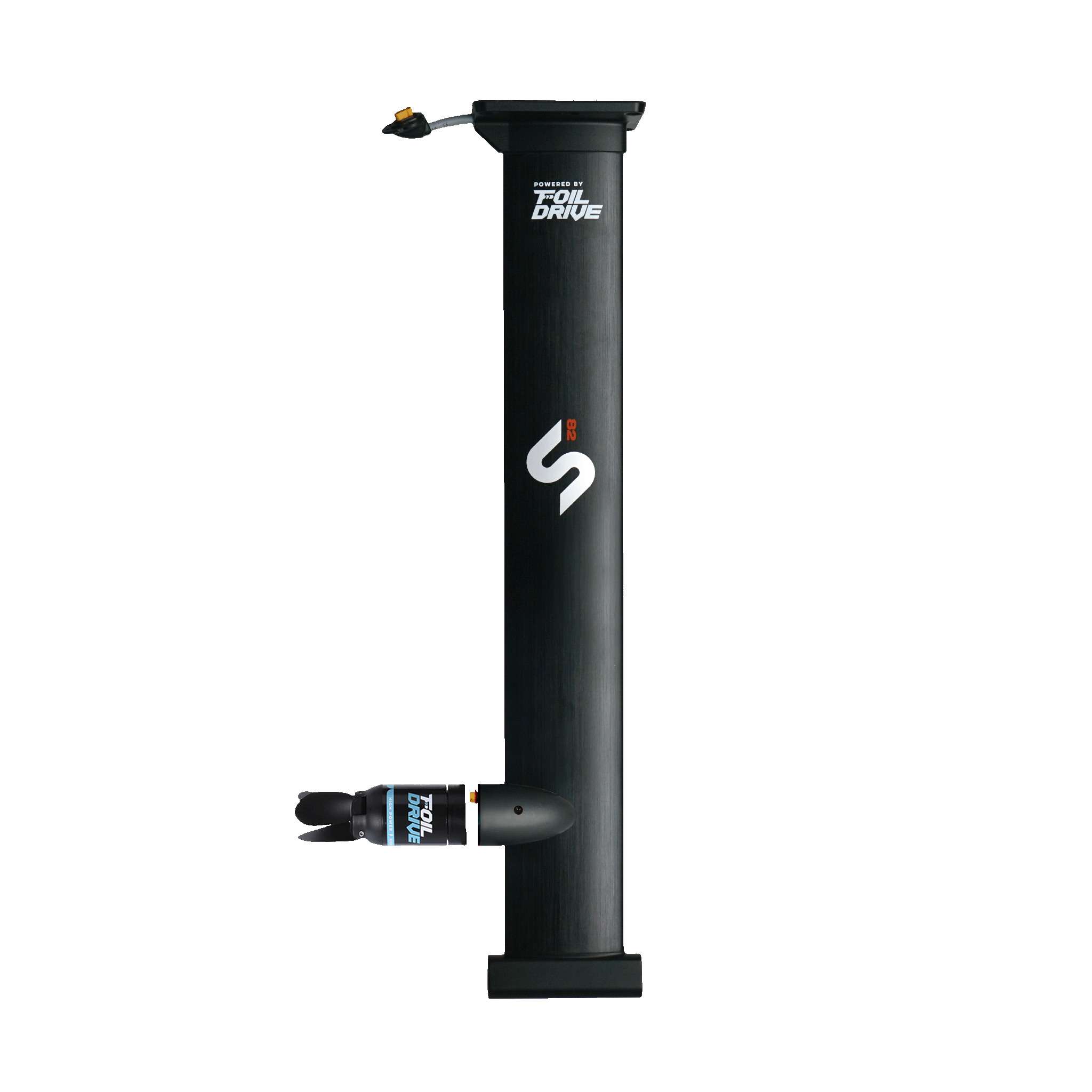

| 70cm / 27.5" eFoil | Flatwater cruising, leisure foiling and continuous powered riding | The motor sits deeper on the mast and remains submerged while foiling, delivering consistent propulsion without depending on waves or wind. |
The measurements describe the fixed motor position—not the overall mast length. Select the configuration that matches your intended riding style.
Why Choose the Mast + Motor Bundle?
Dedicated Integrated Setup
The included motor allows you to build a dedicated Slingshot One-Lock Foil Drive setup without transferring a motor from another mast.
Maximum Motor Performance
The High Power Motor and Three Blade Propeller Set provide strong low-end thrust during the critical takeoff phase.
Cleaner Hydrodynamics
The internal cable and Mini Pod reduce the exposed components and frontal area associated with universal motor installations.
Fast One-Lock Assembly
The streamlined collar connects directly with Slingshot One-Lock foil components for quick assembly and a secure underwater connection.
Key Construction Features
6061 Aluminum Construction
Extruded 6061 aluminum provides an excellent balance of stiffness, strength, weight and corrosion resistance.
Optimized 118mm Chord
The mast profile balances stiffness and efficiency to provide direct feedback and predictable control under motor power.
Low-Profile Mini Pod
The compact motor pod reduces unnecessary bulk and helps maintain smooth water flow around the mast and motor.
Anodized Finish
The smooth anodized surface improves corrosion resistance and helps reduce vibration and mast humming.
Compatibility
| Component | Compatibility | Important Note |
|---|---|---|
| Foil System | Slingshot One-Lock | Designed for the Slingshot One-Lock front wing and tail system. |
| Assist MAX and Assist Slim | Compatible | The 17cm Assist cable position is configured for MAX and Slim systems. |
| Fusion | Compatible | The 17cm Assist configuration requires a Foil Drive Barnacle Cable Extender when paired with Fusion. |
| Motor Accessories | Foil Drive V2 | The included High Power Motor is compatible with Foil Drive V2 motor accessories. |
What’s Included?
- 1 × Slingshot x Foil Drive One-Lock V2 Integrated Mast
- 1 × Foil Drive Integrated Mast High Power Motor
- 1 × Foil Drive Three Blade Propeller Set
- 2 × Integrated mast bolts
- 3 × M4 × 10mm motor plug bolts
- 1 × Slingshot x Foil Drive mast bag cover
Not included: Foil Drive base unit, battery, controller, Slingshot front wing and Slingshot tail. The 17cm Assist configuration also requires a Barnacle Cable Extender when used with Fusion.
Frequently Asked Questions
Is the High Power Motor Included?
Yes. This bundle includes the Foil Drive Integrated Mast High Power Motor with a Three Blade Propeller Set.
Is This a Complete Foil Drive System?
No. You will still need a compatible Assist MAX, Assist Slim or Fusion system with its battery and controller.
Can I Buy the Mast Without the Motor?
Yes. Windance offers a separate mast-only product for customers who already own a compatible Foil Drive V2 Motor.
Can I Change the Motor Position?
No. Select the 17cm Assist or 70cm eFoil configuration when ordering. The integrated motor position is fixed.
Already Have a Standard V2 or High Power V2 Motor?
Save money by choosing the Slingshot One-Lock integrated mast without the motor.
View Mast-Only Version
